Control Panel Overview

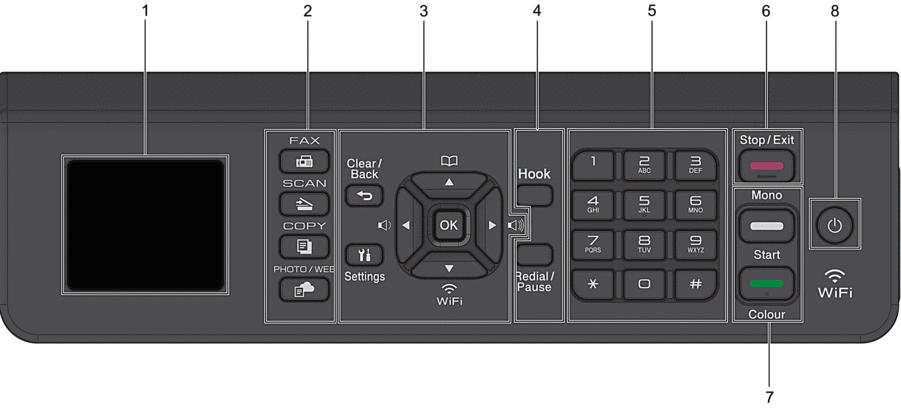

MFC-T910DW
- 1.8"(44.9 mm) Liquid Crystal Display (LCD)
- Displays messages to help you set up and use the machine.
- Mode buttons
-
FAX - Press to switch the machine to Fax mode.
SCAN - Press to switch the machine to Scan mode.
COPY - Press to switch the machine to Copy mode.
PHOTO/WEB - Press to switch the machine to Photo/Web mode.
- Settings buttons
-
-
Clear/Back - Press to go back to the previous menu level.
Settings - Press to access the main menu.
- OK
- Press to select a setting.
-
or
- Press to adjust the ring volume while the machine is idle.
-
-
- Press to store Speed Dial and Group numbers in the machine's memory.
- Press to look up and dial numbers that are stored in the machine's memory.
-
- Press to configure the wireless settings while the machine is idle.
-
or
- Press to scroll through the menus and options.
- or
-
- Press to move the cursor left or right on the LCD.
- Press to either confirm or cancel a procedure which is in progress.
-
- Telephone buttons
-
- Hook
- If the machine is in Fax/Tel (F/T) mode and you pick up the handset of an external telephone during the F/T ring (pseudo/double-ring), press Hook to talk.
- Redial/Pause
-
- Press to redial the last number you called.
- Press to select and redial the numbers from the Outgoing Call history or Caller ID history.
- Press to insert a pause when dialling numbers.
- Dial Pad
-
- Use to dial fax and telephone numbers.
- Use as a keyboard to enter text or characters.
Stop/Exit -
- Press to stop an operation.
- Press to exit from a menu.
- Start buttons
-
Mono Start -
- Press to start sending faxes in monochrome.
- Press to start making copies in monochrome.
- Press to start scanning documents (in colour or monochrome, depending on the scan setting).
Colour Start -
- Press to start making copies in full colour.
- Press to start scanning documents (in colour or monochrome, depending on the scan setting).
Power On/Off - Press to turn the machine on.
- Press and hold down to turn the machine off. The LCD displays [Shutting Down] and stays on for a few seconds before turning itself off. If you have connected an external telephone or TAD, it is always available.
- If you turn the machine off using , it will still clean the print head periodically to maintain print quality. To prolong print head life, provide better ink efficiency, and maintain print quality, keep your machine connected to a power source at all times.

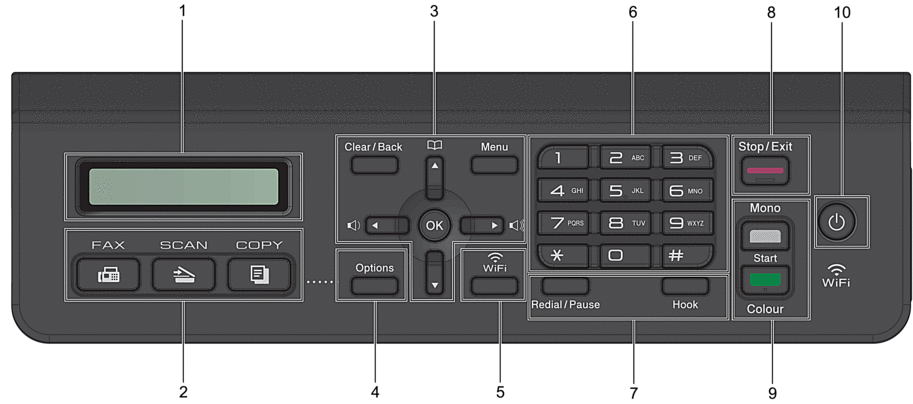

MFC-T810W
- Liquid Crystal Display (LCD)
- Displays messages to help you set up and use the machine.
- Mode buttons
-
- FAX
- Press to switch the machine to Fax mode.
- SCAN
- Press to switch the machine to Scan mode.
- COPY
- Press to switch the machine to Copy mode.
- Menu buttons
-
- Clear/Back
- Press to delete characters or to go back to the previous menu level.
- Menu
- Press to access the main menu.
- OK
- Press to select a setting.
- or
- Press to adjust the ring volume while the machine is idle.
-
-
- Press to store Speed Dial and Group numbers in the machine's memory.
- Press to look up and dial numbers that are stored in the machine's memory.
- or
- Press to scroll through the menus and options.
- or
- Press to move the cursor left or right on the LCD.
- Options
- Press to access temporary settings for copying, scanning or faxing.
- WiFi
- Press to configure the wireless settings while the machine is idle.
- Dial Pad
-
- Use to dial fax and telephone numbers.
- Use as a keyboard to enter text or characters.
- Telephone buttons
-
- Redial/Pause
-
- Press to select and redial the numbers from the Outgoing Call history or Caller ID history.
- Press to insert a pause when dialling numbers.
- Hook
- If the machine is in Fax/Tel (F/T) mode and you pick up the handset of an external telephone during the F/T ring (pseudo/double-ring), press Hook to talk.
- Stop/Exit
-
- Press to stop an operation.
- Press to exit from a menu.
- Start buttons
-
- Mono Start
-
- Press to start sending faxes in monochrome.
- Press to start making copies in monochrome.
- Press to start scanning documents (in colour or monochrome, depending on the scan setting).
- Colour Start
-
- Press to start making copies in full colour.
- Press to start scanning documents (in colour or monochrome, depending on the scan setting).
- Power On/Off
- Press to turn the machine on.
- Press and hold down to turn the machine off. The LCD displays [Shutting Down] and stays on for a few seconds before turning itself off. If you have connected an external telephone or TAD, it is always available.
- If you turn the machine off using , it will still clean the print head periodically to maintain print quality. To prolong print head life, provide better ink efficiency, and maintain print quality, keep your machine connected to a power source at all times.

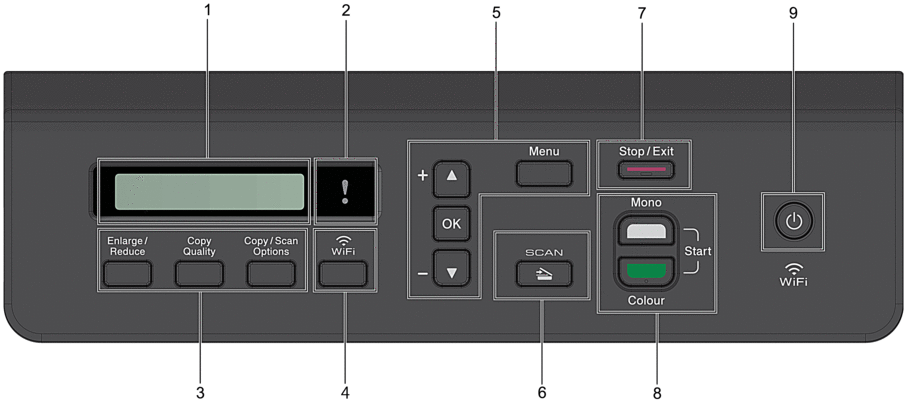

DCP-T310/DCP-T510W/DCP-T710W
- Liquid Crystal Display (LCD)
- Displays messages to help you set up and use the machine.
Warning LED - Blinks in orange when the LCD displays an error or an important status message.
- Copy buttons
- (DCP-T310) (DCP-T510W/DCP-T710W)
- Enlarge / Reduce
Press to enlarge or reduce copies.
- Copy Quality
Press to temporarily change the quality of your copies.
- Number of Copies (DCP-T310)
Press to make multiple copies.
- Copy / Scan Options
Press to access temporary settings for copying or scanning.
- WiFi (DCP-T510W/DCP-T710W)
- Press to configure the wireless settings while the machine is idle.
- Menu buttons
-
- Menu
- Press to access the main menu.
- or
- Press to scroll through the menus and options.
- OK
- Press to select a setting.
SCAN - Press to switch the machine to Scan mode.
- Stop/Exit
-
- Press to stop an operation.
- Press to exit from a menu.
- Start buttons
-
- Mono Start
-
- Press to start making copies in monochrome.
- Press to start scanning documents (in colour or monochrome, depending on the scan setting).
- Colour Start
-
- Press to start making copies in full colour.
- Press to start scanning documents (in colour or monochrome, depending on the scan setting).
- Power On/Off
- Press to turn the machine on.
- Press and hold down to turn the machine off. The LCD displays [Shutting Down] and stays on for a few seconds before turning itself off.
- If you turn the machine off using , it will still clean the print head periodically to maintain print quality. To prolong print head life, provide better ink efficiency, and maintain print quality, keep your machine connected to a power source at all times.
