Load and Print Labels Using the MP Tray

When the back cover (face up output tray) is pulled down, the machine has a straight paper path from the MP tray through to the back of the machine. Use this paper feed and output method when you print on labels.

When you load a different size and type of paper in the tray, you must also change the Paper Size and Paper Type settings in the machine, or on your computer.

  1. Open the machine's back cover (the face up output tray).
  2. On the front of the machine, open the MP tray and lower it gently.

    When using paper smaller than A6/A5 (Long Edge), you can skip the next step.

  3. Pull out the MP tray support (1).

    When using Legal or Folio size paper, pull out the paper support (1).

  4. Slide the MP tray paper guides to fit the width of the paper you are using.
  5. Load paper with the printing surface face up in the MP tray.

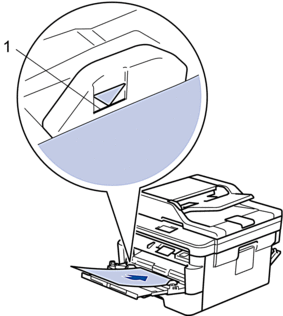

    • Make sure the paper is below the maximum paper mark (1).
  6. Change your print preferences in the Print screen before sending the print job from your computer.
  7. Send your print job to the machine.
  8. Close the back cover (the face up output tray) until it locks in the closed position.
