Control Panel Overview
HL-B2000D
Power On/Off Button -
Turn on the machine by pressing
. Turn off the machine by pressing and holding
.
- Toner LED
- The Toner LED indicates that the Toner is low.
- Drum LED
- The Drum LED indicates that the Drum Unit must be replaced soon.
- Paper LED
- The Paper LED indicates that there is an error relating to paper feeding.
- Ready LED
- The Ready LED blinks to indicate the machine's status.
- Go Button
-
- Press Go to clear certain errors.
- Press Go to print any data remaining in the machine's memory.
- Press and hold Go for about two seconds to cancel a print job.

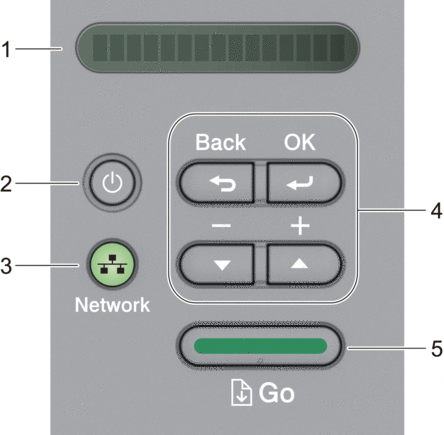

HL-B2050DN
The control panel will vary depending on your model.
- LCD (Liquid Crystal Display)
- Displays messages to help you set up and use your machine.
- Power On/Off Button
-
Turn on the machine by pressing
. Turn off the machine by pressing and holding
. The LCD displays [Shutting Down] for a few seconds before going off.
- Network Buttons
-
- Network
-
Press Network to set up wired network settings.
- Menu Buttons
-
- OK
-
Press to store your machine settings. After you change a setting, the machine returns to the previous menu level.
- Back
-
- Press to go back one level in the menu.
- Press to select the previous digit when setting numbers.
or
( + or -) -
- Press to scroll through menus and options.
- Press to enter a number or to increase or decrease the number. Press and hold down or to scroll faster. When you see the number you want, press OK.
- Go Button
-
- Press to clear certain error messages. To clear all other errors, follow the control panel instructions.
- Press to print any data remaining in the machine's memory.
- Press to select the displayed option. After you change a setting, the machine returns to Ready mode.
- Press and hold Go for about two seconds to cancel a print job.
