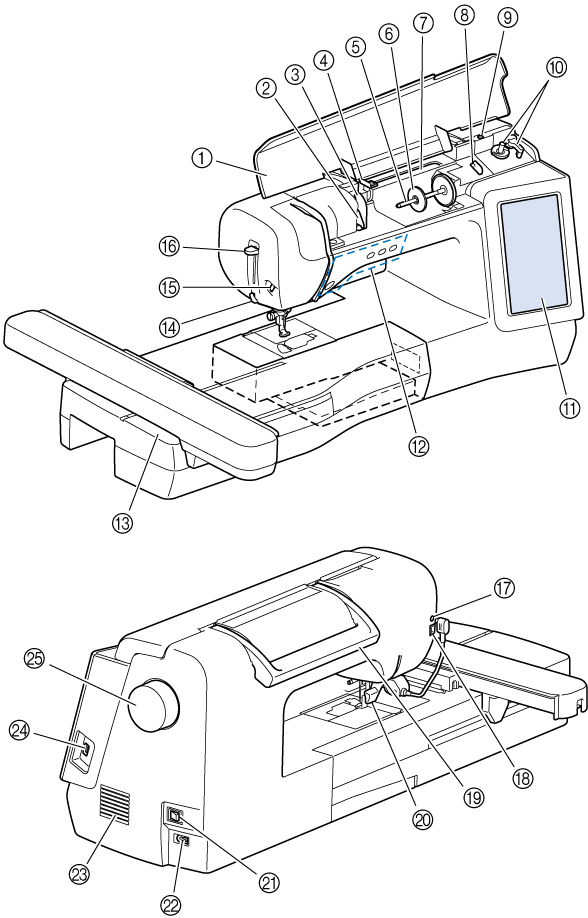

Main Parts

1. Top cover
2. Thread guide plate
3. Thread guide cover
4. Bobbin winding thread guide and pretension disk
5. Spool pin
6. Spool cap
7. Touch pen (stylus) tray
8. Bobbin thread cutter
9. Slot for extra spool pin

   Winding the Bobbin without Removing the Upper Thread

10. Bobbin winder
11. LCD (liquid crystal display)

    LCD Screen

12. Operation buttons

    Operation Buttons

13. Embroidery unit
14. Thread cutter
15. Slot for extension accessory
16. Needle threader lever
17. Jack for extension accessory

    Changing Embroidery Foot “UH+” with LED Pointer

18. Connector for extension accessory
19. Handle

    Carry the machine by its handle when transporting the machine.

20. Presser foot lever

    You cannot use the presser foot lever after the presser foot has been raised using (Presser foot lifter button).

21. Main power switch

    Turning the Machine ON/OFF

22. Power inlet
23. Air vent

    The air vent allows the air surrounding the motor to circulate. Do not cover the air vent while the machine is being used.

24. USB port
25. Handwheel

    Turn the handwheel toward you (counterclockwise) to raise and lower the needle.
