Home > Introduction to Your Machine > Control Panel Overview

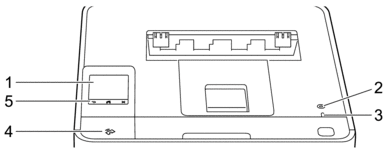

Control Panel Overview


  1. Touchscreen Liquid Crystal Display (LCD)
    Access menus and options by pressing them on the touchscreen.
  2. image Power On/Off
    • Turn the machine on by pressing image.
    • Turn the machine off by holding down image.
  3. LED Power Indicator
    The LED lights up depending on the machine’s power status.
  4. Near Field Communication (NFC)
    You can use card authentication by touching the IC card to the NFC Reader on the control panel.
  5. Touchpanel
    image (Back)
    Press to go back to the previous menu.
    image (Home)
    Press to return to the Home screen.
    image (Cancel)
    Press to cancel an operation. Press to cancel a programmed print job and clear it from the machine’s memory.
