Configuration using the SES/WPS/AOSS control panel menu (Automatic Wireless mode)

IMPORTANT

•	If you are going to connect your Brother machine to your network, we recommend that you contact your system administrator prior to installation. You must know your wireless network settings before you proceed with this installation.
•	If you have previously configured the wireless settings of the machine, you must reset the network LAN settings before you can configure the wireless settings again. Press Menu, 5, 0 for Factory Reset, Reset and choose Yes to accept the change. The machine will restart automatically.

Plug the machine’s power cord into the AC power outlet. Turn on the machine’s power switch..

Press Menu, 5, 2, 7. Using

, choose On and press OK.

WLAN Enable

Turn on your computer.

Close any applications running before configuration.

Put the supplied CD-ROM into your CD-ROM drive. The opening screen will appear automatically.

If the model name screen appears, choose your machine. If the language screen appears, choose your language.

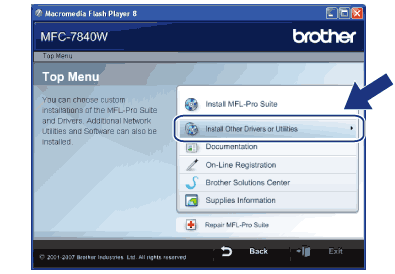

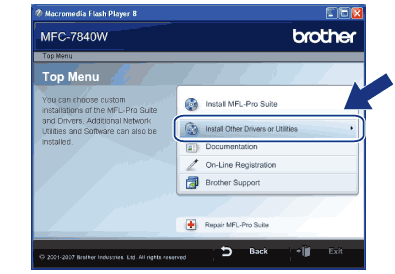

The CD-ROM main menu will appear. Click Install Other Drivers or Utilities.

(For USA)

(For UK)

Note

If this window does not appear, use Windows^® Explorer to run the start.exe program from the root folder of the Brother CD-ROM.

Click Wireless LAN Setup Wizard.

Choose Automatic install (Advanced) and click Next.

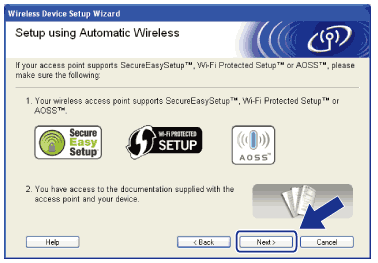

Confirm the on-screen message and click Next.

Press Menu, 5, 2, 3 for SES/WPS/AOSS.

This feature will automatically detect which mode (SecureEasySetup™, Wi-Fi Protected Setup™ or AOSS™) your access point uses to configure your machine.

Note

If your wireless access point supports Wi-Fi Protected Setup™ (PIN Method) and you want to configure your machine using the PIN (Personal Identification Number) Method, see Using the PIN Method of Wi-Fi Protected Setup™.

The machine searches for an access point that supports SecureEasySetup™, Wi-Fi Protected Setup™ or AOSS™ for 2 minutes.

Setting WLAN

Put your access point in the SecureEasySetup™ mode, Wi-Fi Protected Setup™ mode or AOSS™ mode, depending on what is supported by your access point. Please refer to the instruction manual that came with your access point.

If the LCD shows Connected, the machine has successfully connected to your router or access point. You can now use your machine in a wireless network.

If the LCD shows Incorrect Mode, session overlap is detected. The machine has detected more than one router or access point on your network with the Wi-Fi Protected Setup™ mode or AOSS™ mode enabled. Make sure that only one router or access point has the Wi-Fi Protected Setup™ mode or the AOSS™ mode enabled and try starting from 3 again.

If the LCD shows Connection NG (or Connection error), the machine has not successfully connected to your router or access point. Try starting from 3 again. If the same message is indicated again, reset the machine back to the default factory settings and try again. For resetting, see Restoring the network settings to factory default.

If Connection NG (or Connection error) is shown after Setting WLAN, this may be due to a session overlap detection error. The machine has detected more than one router or access point on your network with the SecureEasySetup™ mode, Wi-Fi Protected Setup™ mode or AOSS™ mode enabled. Make sure that only one router or access point has the SecureEasySetup™ mode, Wi-Fi Protected Setup™ mode or AOSS™ mode enabled and try starting from 3 again.

LCD messages when using the SES/WPS/AOSS control panel menu

LCD shows

Connection status

Action

Setting WLAN

Searching or accessing the access point, and downloading settings from the access point

—

Connecting SES

Connecting WPS

Connecting AOSS

Connecting the access point

—

Connected

Connection succeeded.

—

Incorrect Mode

Session overlap is detected.

Check that only one router or access point has the Wi-Fi Protected Setup™ mode or AOSS™ mode enabled and try starting from 3 again.

Connection NG

Connection error

Connection failed.

1.	Try starting 3 again.
2.	If the same message continues, reset the machine back to the factory settings and try again.

(If it is shown after the LCD shows Setting WLAN.)

Connection failed.

Session overlap is detected.

Check that only one router or access point has the SecureEasySetup™ mode, Wi-Fi Protected Setup™ mode or AOSS™ mode enabled and try starting from 3 again.

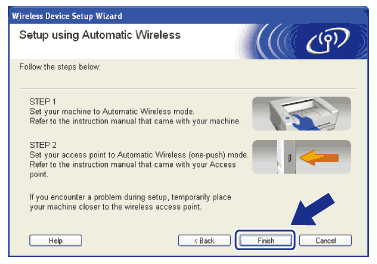

Click Finish.

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Install MFL-Pro Suite from the CD-ROM menu.
