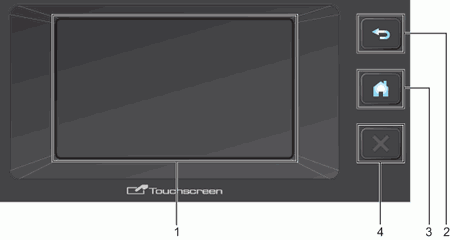

Control Panel Overview

1.	3.7" Touchscreen LCD This is a screen. You can access the menus and options by pressing them on the Touchscreen.
2.	Press to go back to the previous menu level. The Back key does not light up when it is unavailable.
3.	Lets you return to Ready mode. The Home key does not light up when it is unavailable.
4.	Press to cancel. The Cancel key does not light up when it is unavailable.

3.7" Touchscreen LCD

The machine has three kinds of Ready mode. You can change the Ready mode screen by swiping left or right, or pressing

button.

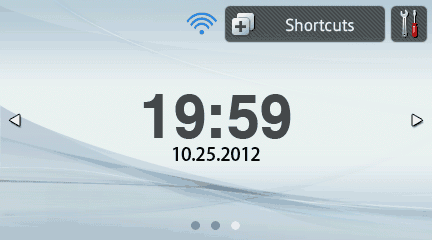

Clock Mode

In this mode, you can see the date and time.

The LCD shows the current machine status when the machine is idle.

Date and Time

Lets you see the date and time.

When WLAN is enable, a four level indicator shows the current wireless signal strength if you are using a wireless connection.


0			Max

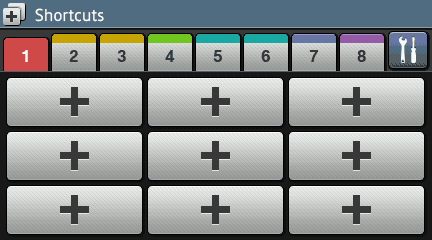

Shortcuts

Lets you set up Shortcut menus.

Also you can quickly scan using the options that you have set as shortcuts.

Note

Eight shortcut tabs are available. You can set up nine shortcut menus in a shortcut tab.

Lets you access the main settings.

The information icon

appears on the Touchscreen when there is an error or maintenance message. For details, see Error and Maintenance Messages.

Page Top

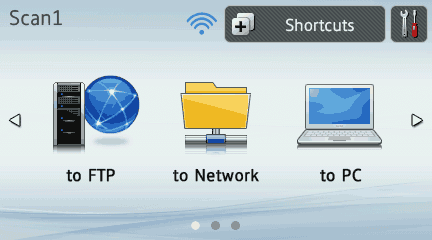

Scan 1 Mode

In this mode, Scan to FTP, Scan to Network and Scan to PC are available.

The LCD shows the current machine status when the machine is idle.

to FTP

Lets you access the Scan to FTP function.

to Network

Lets you access the Scan to Network function.

to PC

Lets you access the Scan to PC function.

When WLAN is enable, a four level indicator shows the current wireless signal strength if you are using a wireless connection.


0			Max

Shortcuts

Lets you set up Shortcut menus.

Also you can quickly scan using the options that you have set as shortcuts.

Note

Eight shortcut tabs are available. You can set up nine shortcut menus in a shortcut tab.

Lets you access the main settings.

The information icon

appears on the Touchscreen when there is an error or maintenance message. For details, see Error and Maintenance Messages.

Page Top

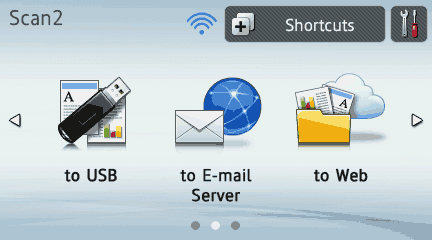

Scan 2 Mode

In this mode, Scan to USB, Scan to E-mail Server and Scan to Web are available.

The LCD shows the current machine status when the machine is idle.

to USB

Lets you access the Scan to USB function.

to E-mail Server

Lets you access the Scan to E-mail Server function.

to Web

Lets you access the Scan to Web function.

When WLAN is enable, a four level indicator shows the current wireless signal strength if you are using a wireless connection.


0			Max

Shortcuts

Lets you set up Shortcut menus.

Also you can quickly scan using the options that you have set as shortcuts.

Note

Eight shortcut tabs are available. You can set up nine shortcut menus in a shortcut tab.

Lets you access the main settings.

The information icon

appears on the Touchscreen when there is an error or maintenance message. For details, see Error and Maintenance Messages.

Note

•	This product adopts the font of ARPHIC TECHNOLOGY CO.,LTD.
•	MascotCapsule UI Framework and MascotCapsule Tangiblet developed by HI CORPORATION are used. MascotCapsule is a registered trademark of HI CORPORATION in Japan.

Page Top
