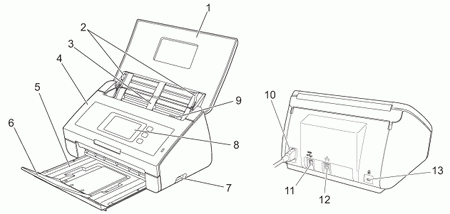

About This Machine
1.
Top Cover
The machine is turned on by opening the Top Cover.
2.
Document Guides
3.
Automatic Document Feeder (ADF)
4.
Front Cover
5.
Output Tray
6.
Document Stopper
7.
USB Direct Interface
8.
Control Panel
9.
Cover Release Lever
10.
AC Power Connector
11.
USB Connector
12.
LAN Connector
13.
Kensington Security Slot
