Insert Tape Cassette

Make sure the ink ribbon is not sagging.


If the ink ribbon is sagging, wind the loose ink ribbon back onto the spool, as shown.


PT-N10

  1. Open the Tape Cassette Compartment Cover.
  2. Insert the Tape Cassette as illustrated.

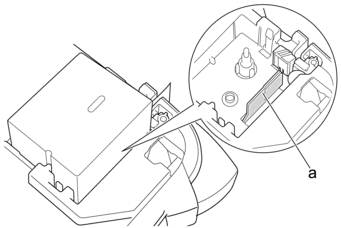

    Make sure that the Tape Cassette fits securely between the clips (a) when it snaps into place.
    1. Clips
    NOTE
    • When inserting the Tape Cassette, make sure that the tape does not catch on the Print Head.
      1. Print Head
    • Make sure that the end of the tape exits through the Tape Exit Slot, as illustrated.
  3. Close the Tape Cassette Compartment Cover.

PT-N20/PT-N25BT

  1. Open the Tape Cassette Compartment Cover.
  2. Insert the Tape Cassette as illustrated.

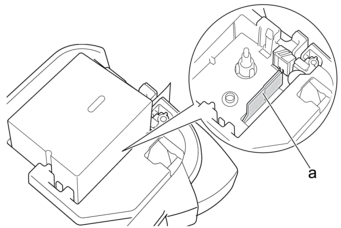

    Make sure that the Tape Cassette fits securely between the clips (a) when it snaps into place.
    1. Clips
    NOTE
    • When inserting the Tape Cassette, make sure that the tape does not catch on the Print Head.
      1. Print Head
    • Make sure that the end of the tape exits through the Tape Exit Slot, as illustrated.
  3. Close the Tape Cassette Compartment Cover.
