Convert the Device Settings File

BRConfiguration Tool supports JSON and ELDPK settings file formats and allows you to encrypt and decrypt these files.

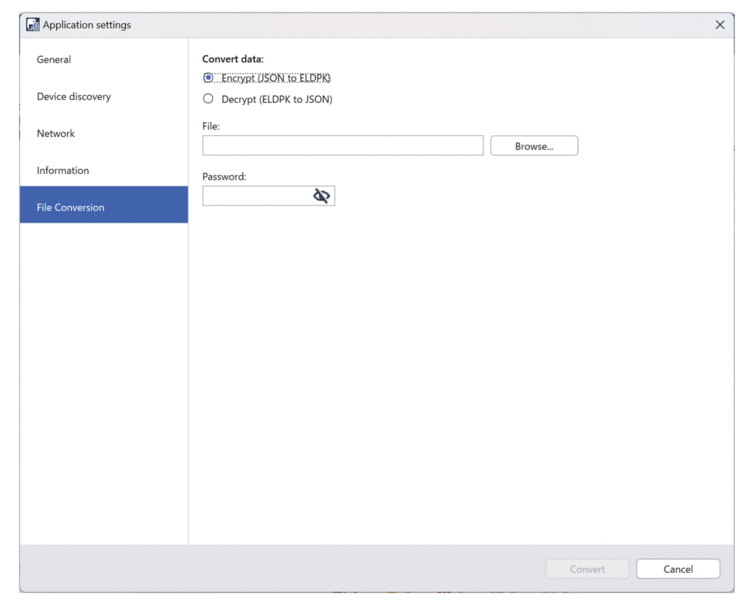

  1. Click image to open the Application settings window.
  2. Click the File Conversion menu in the left pane.


  3. Do one of the following:
    • Select Encrypt (JSON to ELDPK) to convert a JSON file to an ELDPK file.
    • Select Decrypt (ELDPK to JSON) to convert an ELDPK file to a JSON file.
  4. Specify the location of the file you want to convert by typing the file path in the File: field or clicking Browse.
    The converted file is saved in the same folder as the original file.
  5. Type the password in the Password: field.
  6. Click Convert to convert the file.
