Specifications

General Specifications

Printer Type

Inkjet

Print Head
Mono

Piezo with 420 nozzles x 1

Colour

Piezo with 420 nozzles x 3

Memory Capacity

512 MB

LCD (liquid crystal display) *1

2.7 in. (6.8 cm) TFT Colour Touchscreen LCD

Power Source

AC 220 to 240 V 50/60 Hz

Power Consumption *2

Printing *3: Approx. 23 W

Ready *4: Approx. 4.5 W

Sleep *4: Approx. 0.7 W

Power Off *4 *5: Approx. 0.03 W

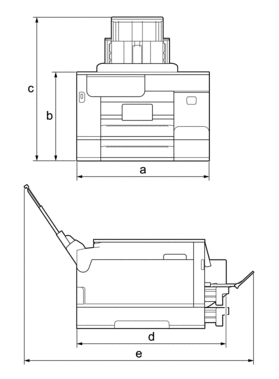

Dimensions

a: 435 mm

b: 291 mm

c: 415 mm

d: 489.5 mm

e: 690 mm


Weights

14.3 kg

Noise Level
Sound Pressure *6
Operating
  • Printing

    54.5 dB(A) (Approx.)

Sound Power *7
Printing *8

LWAc = 6.88 B(A) (Mono)

LWAc = 6.81 B(A) (Colour)

Temperature
Operating

10 to 35°C

Best Print Quality

20 to 33°C

Humidity
Operating

20 to 80% (without condensation)

Best Print Quality

20 to 80% (without condensation)

*1
Measured diagonally.
*2
Measured when the machine is connected using the same network connection as the ENERGY STAR Ver. 3.2 test method. Power consumption varies slightly depending on the usage environment or part wear.
*3
When single-sided printing, resolution: standard / document: ISO/IEC 24712 printed pattern.
*4
Measured according to IEC 62301 Edition 2.0.
*5
Even when the machine is turned off, it will automatically turn itself on periodically for print head maintenance, and then turn itself off.
*6
Noise depends on printing conditions.
*7
Measured in accordance with the method described in ISO 7779.
*8

Print speed: 28 ipm (Mono) / 26 ipm (Colour)

These print speeds are for 1-sided printing and measured in accordance with the ISO/IEC 24734 standard.

Print Media Specifications

Paper Input Paper Tray #1 Paper Type *1

Plain Paper, Inkjet Paper (coated paper), Glossy Paper, Recycled Paper

Paper Size

  • A4, Letter, Legal, Mexico Legal, India Legal, Folio, Executive, A5, A6, Envelopes (C5, Com-10, DL, Monarch), Photo (10 x 15 cm), Photo L (9 x 13 cm), Photo 2L (13 x 18 cm), Index card (13 x 20 cm)
Maximum Paper Capacity

Up to 250 sheets of 80 g/m² Plain Paper

Paper Tray #2 Paper Type

Plain Paper, Recycled Paper

Paper Size

  • A4, Letter, Legal, Mexico Legal, India Legal, Folio, Executive, A5
Maximum Paper Capacity

Up to 250 sheets of 80 g/m² Plain Paper

Multi-purpose Tray (MP Tray)

Paper Type *1

Plain Paper, Inkjet Paper (coated paper), Glossy Paper, Recycled Paper

Paper Size / Maximum Paper Capacity

  • A4, Letter, Legal, Mexico Legal, India Legal, Folio, Executive, A5, A6, Envelopes (C5, Com-10, DL, Monarch), Photo (10 x 15 cm), Photo L (9 x 13 cm), Photo 2L (13 x 18 cm), Index card (13 x 20 cm)

Up to 100 sheets of 80 g/m² Plain Paper

Long Paper (Width: 88.9 - 215.9 mm / Height: 355.7 - 1200 mm)

Up to 1 sheet

Paper Output *1
  • Up to A4/Letter size paper

    Up to 150 sheets of 80 g/m² Plain Paper (face up print delivery to the output paper tray)

  • Over A4/Letter size paper

    Up to 50 sheets of 80 g/m² Plain Paper (face up print delivery to the output paper tray)

*1
For glossy paper, remove any printed pages from the output paper tray immediately to avoid smudging.

Printer Specifications

Emulation

PCL6, BR-Script3, PDF version 2.0

Resolution

Up to 1200 × 4800 dpi

Printing Width *1

204 mm

Borderless *2: 210 mm

Borderless

A4, Letter, Legal, Mexico Legal, India Legal, Folio, A6, Photo (10 x 15 cm), Photo L (9 x 13 cm), Photo 2L (13 x 18 cm), Index card (13 x 20 cm)

Automatic 2-sided Printing

Paper Type

Plain Paper, Recycled Paper

Paper Size

A4, Letter, Legal, Mexico Legal, India Legal, Folio, Executive, A5

Print Speed

See your model's page on your local Brother website.

*1
When printing on A4 size paper.
*2
When the Borderless feature is set to On.

USB Flash Drive Specifications

Compatible Media

USB Flash drive *1

JPEG Print
Resolution

Up to 1200 x 4800 dpi

Paper Type

Plain Paper, Inkjet Paper (coated paper), Glossy Paper, Recycled Paper

Paper Size

A4, Letter, Photo (10 x 15 cm), Photo 2L (13 x 18 cm)

File Format

JPEG (Progressive JPEG format is not supported)

PDF Print
Resolution

Up to 1200 x 1800 dpi

Paper Type

Plain Paper, Recycled Paper

Paper Size

A4, Letter, Legal, Mexico Legal, India Legal, Folio, A5, A6

File Format

PDF version 2.0

*1
USB Flash drive is not included. USB Mass Storage standard. Supported formats: FAT12/FAT16/FAT32/exFAT

Interface Specifications

USB *1 *2

Use a USB 2.0 interface cable (TypeA/B) that is no longer than 5 m.

LAN

Use a straight-through Category 5e (or greater) twisted-pair cable for 10Base-T/100Base-TX/1000Base-T.

Wireless LAN

IEEE 802.11a/b/g/n (Infrastructure)

IEEE 802.11a/g/n (Wi-Fi Direct)

NFC

Yes

*1
Your machine has a USB 2.0 Hi-Speed interface. The machine can also be connected to a computer that has a USB 1.1 interface.
*2
Third party USB ports are not supported.

Network Specifications


You can connect your machine to a network for Network Printing.

Network Security (Wired)

SMTP-AUTH, SSL/TLS (IPP, IPPS, HTTP, HTTPS, SMTP, LDAP, LDAPS, TFTP, TFTPS), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), OAuth 2.0 (SMTP), Kerberos, IPsec

Network Security (Wireless)

SMTP-AUTH, SSL/TLS (IPP, IPPS, HTTP, HTTPS, SMTP, LDAP, LDAPS, TFTP, TFTPS), SNMP v3, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), OAuth 2.0 (SMTP), Kerberos, IPsec

Wireless Network Security *1

WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)

Wireless Setup Support Utility WPS

Yes

*1
Wi-Fi Direct supports WPA2-PSK (AES) only.

Computer Requirements Specifications

Supported Operating Systems And Software Functions

Computer Platform & Operating System Version Computer Interface Processor Hard Disk Space to Install *1

USB *2

Wired LAN Wireless LAN For Drivers For Applications (Including Drivers)

Windows 10 Home

Windows 10 Pro

Windows 10 Education

Windows 10 Enterprise

Printing

32 bit (x86) or 64 bit (x64) processor

50 MB

1.8 GB

Windows 11 Home

Windows 11 Pro

Windows 11 Education

Windows 11 Enterprise

64 bit (x64) processor

Windows Server 2016

Windows Server 2019

Windows Server 2022

Printing

64 bit (x64) processor

50 MB

50 MB

macOS v13 *3

macOS v14 *3

macOS v15 *3

Printing

64 bit processor

N/A

500 MB

ChromeOS™

Printing

N/A

N/A

N/A

Linux

(Supported Package Management System: dpkg, rpm)

 *4

Printing

32bit (x86) or 64bit (x64) processor

20 MB

20 MB

*1
An Internet connection is required to install the software.
*2
Third party USB ports are not supported.
*3

macOS Disclaimer

AirPrint capable: Printing via macOS requires the use of AirPrint. Mac drivers are not provided for this machine.
*4
The driver is known to work on the following Linux Distributions.

Red Hat Enterprise Linux 8.6 64bit, Red Hat Enterprise Linux 9.1 64bit, Fedora 39 64bit, Mageia 9 32bit, Mageia 9 64bit, openSUSE 15.5 64bit, SUSE Enterprise15-SP4 64bit, Debian 12.2.0 32bit, Debian 12.2.0 64bit, Ubuntu MATE 18.04 32bit, Ubuntu 22.04 64bit, Ubuntu 23.10 64bit, Linux Mint 21.2 64bit, Ubuntu 24.04 64bit.

For the latest driver updates, go to your model's Downloads page at support.brother.com/downloads.

For the latest supported OS, go to your model's Supported OS page at support.brother.com/os.

All trademarks, brand and product names are the property of their respective companies.
