Accessories tab

Note icon Note

From the Start menu, select Control Panel and then Printers *1. Right-click the Brother HL‑5240/5250DN series icon and select Properties. You can access the Accessories tab from the Printer Properties dialog box.
*1
Printers and Faxes for Windows® XP users.

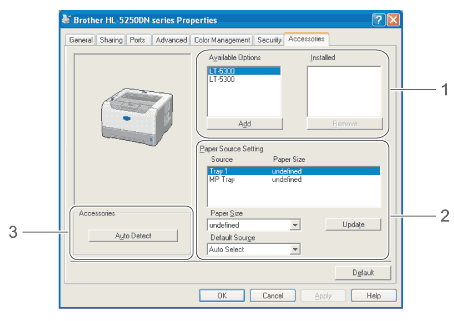

Screen
•
Available Options (1)
You can manually add and remove the options that are installed on the printer.
•
Paper Source Setting (2)
This feature identifies the paper size defined for each paper tray.
•
Paper Size
This setting allows you to define which paper size is used for each tray. Highlight the tray you want to define and then choose the paper size from the pull-down menu. Click Update to apply the setting to the tray. When using more than one paper size you must define the paper size for each tray so the paper is pulled from the correct tray.
•
Default Source
This setting allows you to choose the default paper source that your document will be printed from. Choose the Default Source from the pull-down menu and click Update to save your setting. The Auto Select setting will automatically pull paper from any tray that has a defined paper size that matches your document.
•
Auto detection of printer options (3)
The Auto Detect function finds the currently installed optional unit devices and shows the available settings in the printer driver. When you click Auto Detect, options that are installed on the printer will be listed. You can manually add or remove options.
Note icon Note

The Auto Detect function is not available under certain printer conditions.
