Automatic duplex printing (For HL-5250DN)

Note icon Note
•
The screens in this section are from Windows® XP. The screens on your PC may vary depending on your operating system.
•
Use A4, Letter or Legal size paper when you use the automatic duplex printing function.
•
Make sure that the back cover is closed.
•
Make sure that the duplex tray is installed correctly in the printer.
•
If paper is curled, straighten it and then put it back in the paper tray.
•
You should use regular paper. Do not use bond paper or thin paper.
1
Put paper in the paper tray or MP tray.
2
For the Windows printer driver
(1)
Open the Properties dialog box in the printer driver.
(2)
From the General tab, click the Printing Preferences icon.
(3)
From the Advanced tab, click the Duplex icon.
(4)
Make sure that Use Duplex Unit has been chosen.
(5)
Click OK. The printer will print on both sides of the paper automatically.

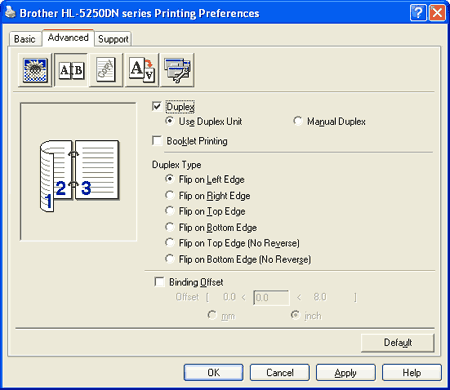

Screen
For the BR-Script printer driver
(1)
Open the Properties dialog box in the printer driver.
(2)
From the General tab, click the Printing Preferences icon.
(3)
From the Layout tab, choose Orientation, Print on Both Sides (Duplex) and Page Order.
(4)
Click OK. The printer will print on both sides of the paper automatically.

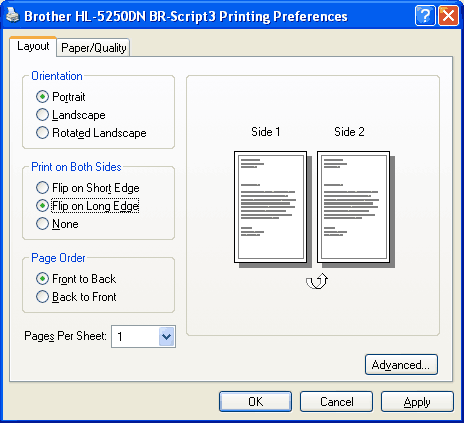

Screen
