After you have just used the printer, some internal parts of the printer will be extremely hot. When you open the front cover or back cover of the printer, DO NOT touch the shaded parts shown in the illustrations.
If a paper jam occurs inside the printer, follow these steps:
1
Turn off the printer power switch. Press the front cover release button and then open the front cover.
2

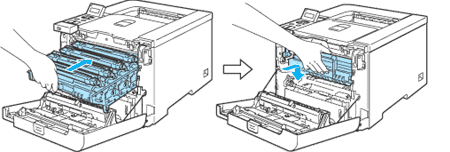

Hold the green handle of the drum unit. Lift the drum unit up and then pull it out until it stops.
Note
If you cannot pull the drum unit out, make sure that the front cover is fully open as shown below.
3
Release the gray lock lever (1) that is on the left side of the printer. Pull the drum unit completely out using the green handles on the drum unit.
CAUTION

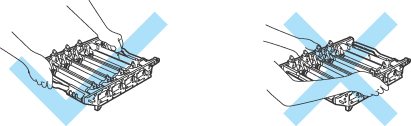

Hold the green handles of the drum unit when you carry it. DO NOT hold the sides of the drum unit.
We recommend that you place the drum unit on a clean, flat surface with a piece of disposable paper underneath it in case you accidentally spill or scatter toner.
To prevent damage to the printer from static electricity, DO NOT touch the electrodes shown in the illustration.
4
Pull out the jammed paper slowly.
5
Put the drum unit back in the printer as follows.
(1)
Make sure that the gray lock lever (1) is in the up position and put the drum unit in the printer. Push down the gray lock lever (1).
Note

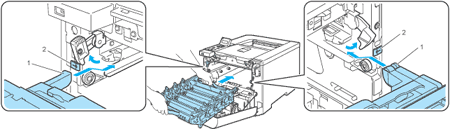

When you put the drum unit in the printer, match the green guides (1) of the drum unit handle to the green arrows (2) on both sides of the machine.
