After you have just used the printer, some internal parts of the printer will be extremely hot. When you open the front cover or back cover of the printer, DO NOT touch the shaded parts shown in the illustrations.
If a paper jam occurs behind the face-up output tray, follow these steps:
1
Open the back cover.
2

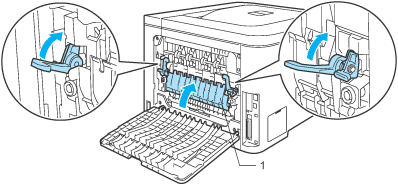

Pull the tabs at the left and right hand sides toward you and fold down the fuser coverĀ (1).
3
Using both hands, gently pull the jammed paper out of the fuser unit.
HOT SURFACE
After you have just used the printer, some internal parts of the printer will be extremely hot. Wait for the printer to cool down before you touch the internal parts of the printer.
4

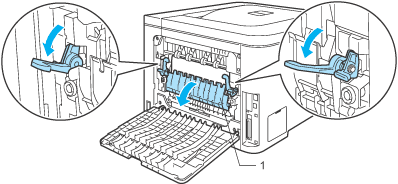

Close the fuser coverĀ (1) and lift the tabs at the left and right hand sides.
