How to configure your wireless machine, using the PIN Method of Wi-Fi Protected Setup

IMPORTANT IMPORTANT
If you are going to connect the Brother machine to your network, we recommend that you contact your system administrator prior to installation.
1
Make sure that the power cord is plugged in.
2
Turn on the machine and wait until the machine is in the Ready state.
3
Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine.
4
Press + or - to choose Network.
Press OK.
5
Press + or - to choose WLAN.
Press OK.
6
Press + or - to choose WPS w/PIN Code.
Press OK.
7
The LCD will show an 8 digit PIN and the machine starts searching for an access point for 5 minutes.
8
Using a computer that is on the network, type “http://access point’s IP address/” into your browser. (Where “access point’s IP address” is the IP address of the device that is used as the Registrar1.) Go to the WPS (Wi-Fi Protected Setup) setting page and input the PIN which the LCD shows in 7 to the Registrar and follow the on-screen instruction.
1
The Registrar is normally the access point/router.
Note Note
The setting page is different, depending on the brand of access point/router. See the instruction manual that came with your access point/router.
If you are using your Windows Vista® computer as a Registrar, follow the instructions below.
Note Note
To use a Windows Vista® computer as a Registrar, you need to register it to your network in advance. See the instruction manual that came with your access point/router.
1.
Click the Graphic button and then Network.
2.
Click Add a wireless device.
3.
Choose your machine and click Next.
4.
Input the PIN from the printed page and then click Next.
5.
Choose your network that you want to connect to, and then click Next.
6.
Click Close.
9
If the LCD shows Connected, the machine has successfully connected to your access point/router. You can now use your machine in a wireless network.

If the LCD shows Connection Fail, the machine has not successfully connected to your access point/router, or the entered PIN code is invalid. Make sure you enter the correct PIN code, and try starting from 6 again. If the same message is indicated again, reset the print server back to its factory default settings and try again. For resetting, see Reset the network settings to the factory default.

If the LCD shows No Access Point, the machine has detected no access point/router on your network. Make sure you place the Brother machine as close to the network access point/router as possible with minimal obstructions, and try starting from 6 again. If the same message is indicated again, reset the print server back to its factory default settings and try again. For resetting, see Reset the network settings to the factory default.
OK!
You have completed the wireless setup. To install the printer driver, Go to step 1 on For Windows® users for Windows® or For Macintosh users for Macintosh.

For Windows® users

IMPORTANT IMPORTANT
DO NOT try to cancel any of the screens during this installation.
1
Turn on your computer. (You must be logged on with Administrator rights.)
Close any applications running before configuration.
2
Put the supplied CD-ROM into your CD-ROM drive. The opening screen will appear automatically.
Choose your printer model and the language.
3
Click Install Printer Driver on the menu screen.
Screen
Note Note
Choose the Install Printer Driver icon for your region.
4
Click Wireless Network users.
Screen
Note Note
For Windows Vista®, when the User Account Control screen appears, click Allow.
Screen
5

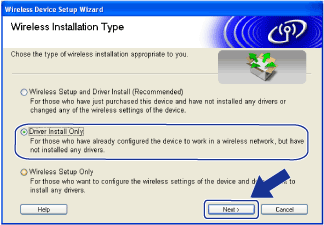

Choose Driver Install Only, and then click Next.
Screen
6
When the License Agreement window appears, click Yes if you agree to the License Agreement.
Screen
7
Choose Standard Installation, and then click Next.
Screen
8
Choose Search the network for devices and choose from a list of discovered devices (Recommended). Or enter your printer's IP address or its node name. Click Next.
Screen
Note Note
You can find your printer’s IP address and the node name by printing out the Network Configuration page. See Printing the Network Configuration page.
9
Choose your printer, and then click Next.
Screen
Note Note
If your printer takes a long time to appear on the list, 1 minute or more, then click Refresh.
10
Click Finish.
Screen
Note Note
•
If you want to register your product on-line, check On-Line Registration.
•
If you do not want to set your printer as Default printer, uncheck Set as Default Printer.
•
If you want to disable the Status Monitor, uncheck Enable Status Monitor.
OK!
Setup is now complete.
