Configure the wireless settings

Make sure that the power cord is plugged in.

Turn on the machine and wait until the machine is in the Ready state.

Turn on your Macintosh.

Put the supplied CD‑ROM into your CD‑ROM drive. Double‑click the HL3000 icon on your desktop. Double‑click the Start Here icon. Choose your printer model and the language.

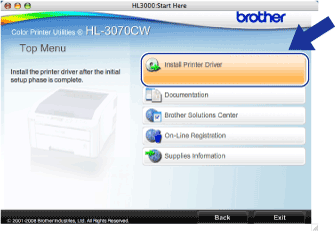

Click Install Printer Driver on the menu screen.

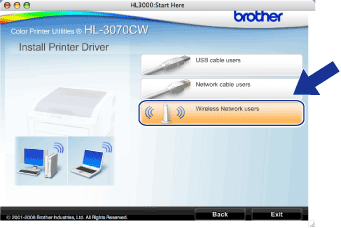

Click Wireless Network users.

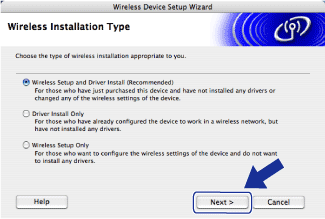

Choose Wireless Setup and Driver Install (Recommended) or Wireless Setup Only, and then click Next.

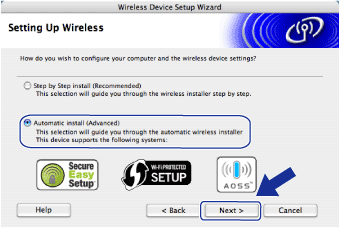

Choose Automatic install (Advanced) and click Next.

Confirm the on‑screen message and click Next.

Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine.

Press + or - to choose Network.

Press OK.

Press + or - to choose WLAN.

Press OK.

Press + or - to choose SES/WPS/AOSS.

Press OK.

The machine will search for an access point that supports SecureEasySetup™, Wi-Fi Protected Setup or AOSS™ for 2 minutes.

Put your access point in the SecureEasySetup™ mode, Wi-Fi Protected Setup mode or AOSS™ mode, depending on what is supported by your access point. Please refer to the instruction manual that came with your access point.

If the LCD shows Connected, the machine has successfully connected to your access point/router. You can now use your machine in a wireless network.

If the LCD shows Connection Error, a session overlap has been detected. The machine has detected more than one access point/router on your network with the SecureEasySetup™ mode, the Wi-Fi Protected Setup mode or AOSS™ mode enabled. Make sure that only one access point/router has the SecureEasySetup™ mode, the Wi-Fi Protected Setup mode or the AOSS™ mode enabled and try starting from 10 again.

If the LCD shows No Access Point, the machine has not detected your access point/router on your network with the SecureEasySetup™ mode, the Wi-Fi Protected Setup mode or AOSS™ mode enabled. Move the machine closer to your access point/router and try starting from 10 again.

If the LCD shows Connection Fail, the machine has not successfully connected to your access point/router. Try starting from 10 again. If the same message is indicated again, reset the print server back to its factory default settings and try again. (For resetting, see Reset the network settings to the factory default.)

LCD messages when using the SES/WPS/AOSS control panel menu

LCD shows

Connection status

Action

Setting WLAN

Searching or accessing the access point, and downloading settings from the access point

Connecting SES

Connecting WPS

Connecting AOSS

Connecting the access point

Connected

Connection succeeded.

Connection Error

Session overlap has been detected.

Check that only one router or access point has the SecureEasySetup™ mode, the Wi-Fi Protected Setup mode or AOSS™ mode enabled and try starting from 10 again.

No Access Point

The access point detection failed.

1.	Move the machine closer to your access point/router and try starting from step 10 again.
2.	If the same message continues, reset the print server back to its factory default settings and try again.

Connection Fail

Connection failed.

1.	Try starting from 10 again.
2.	If the same message continues, reset the print server back to its factory default settings and try again.

Click Next or Finish.

You have completed the wireless setup. If you chose to install the printer driver in step 7, Go to the next step.

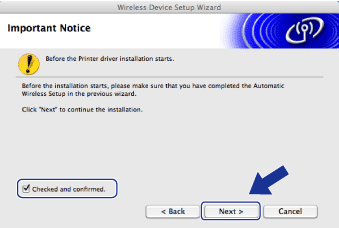

Check the box after you confirm that you have completed the wireless settings, and then click Next. Go to Installing the printer driver.
