Control panel overview

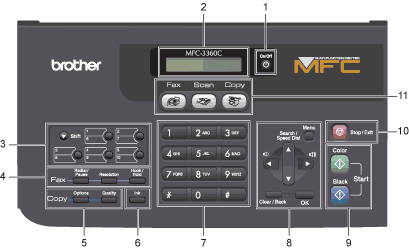

MFC-3360C

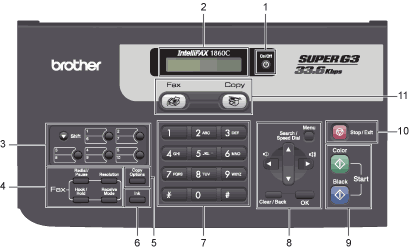

FAX-1860C

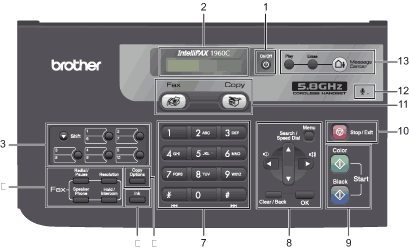

FAX-1960C

On/Off

You can turn the machine on or off.

LCD (liquid crystal display)

Displays messages on the screen to help you set up and use your machine.

One-Touch keys

Instantly accesses your stored Quick-Dial numbers.

•	Shift When held down, lets you access One-Touch numbers 6 to 10.

Fax keys

•	Redial/Pause Redials the last number called. It also inserts a pause when programming quick-dial numbers.
•	Resolution Lets you temporarily change the resolution when sending a fax.
•	Hook/Hold (MFC-3360C and FAX-1860C only) Press before dialing if you want to make sure a fax machine will answer, and then press Black Start or Color Start. Also, lets you place telephone calls on hold.
•	Hold/Intercom (FAX-1960C only) Lets you place telephone calls on hold. Also, press this key to speak on the intercom or to transfer an incoming call to the cordless handset.
•	Speaker Phone (FAX-1960C only) Lets you speak to another party without lifting the handset.
•	Receive Mode (FAX-1860C only) Press to select how your fax machine will handle incoming calls. (See Choosing the Receive Mode.)

Copy keys

•	Quality (MFC-3360C only) Lets you temporarily change copy quality setting.
•	Options (MFC-3360C only) Lets you temporarily change multiple copy settings.
•	Copy Options (FAX-1860C and FAX-1960C) Lets you temporarily change multiple copy settings.

Ink

Lets you clean the print head, check the print quality, and check the available ink volume.

Dial Pad

Use these keys to dial telephone and fax numbers and as a keyboard for entering information into the machine.

(Canada only) The # key lets you temporarily switch the dialing mode during a telephone call from Pulse to Tone.

Menu keys:

•	Menu Lets you access the Menu to program your settings in the machine.
•	Search/Speed Dial Lets you look up and dial numbers that are stored in the memory.
•	Volume keys In Fax mode, you can press these keys to adjust the ring volume.
•	Press to scroll backward to a menu selection.
•	or Press to scroll through the menus and options.
•	Clear/Back Press to cancel the current setting.
•	OK Lets you store your settings in the machine.

Start keys:

•	Color Lets you start sending faxes or making copies in full color. For MFC-3360C, also lets you start a scanning operation (in color or black & white, depending on the scanning setting in the ControlCenter software).

•	Black Color Lets you start sending faxes or making copies in black & white. For MFC-3360C, also lets you start a scanning operation (in color or black, depending on the scanning setting in the ControlCenter software).

10.

Stop/Exit

Stops an operation or exits from a menu.

11.

Mode keys:

•	Fax Lets you access Fax mode.
•	Scan (MFC-3360C only) Lets you access Scan mode.
•	Copy Lets you access Copy mode.

12.

Microphone (FAX-1960C only)

Used by the Speaker Phone feature and to record messages.

13.

Message Center keys (FAX-1960C only)

•	MC On/Off Turns the Message Center on or off. Will also flash if you have new messages.
•	Erase Deletes voice and fax messages.
•	Play Plays voice messages stored in the memory.
