PhotoCapture Center® (Not available for MFC-3360C)

You can access a Media Card installed in the machine from a Macintosh®.
CAUTION CAUTION

DO NOT start your Macintosh® with a media card installed in the media drive of the machine. You could lose your data or damage the card.

For USB cable users

1
Put a CompactFlash®, Memory Stick®1, Memory Stick Pro™2, MultiMediaCard™, SecureDigital™ or xD-Picture Card™3 into your machine.
The Removable Disk icon appears on the Desktop.
1
This product also supports CompactFlash® type1.
2
MagicGate Memory Stick® and Memory Stick Pro™ can be used, but any music data that is stored on the stick cannot be read.
3
This product supports xD-Picture Card™ Type M/Type H (Large Capacity).
Note Note

If you create a name for the volume level of the media card, the name appears instead of ‘Removable Disk’.
2

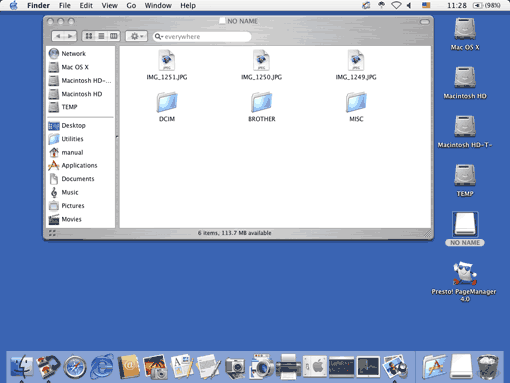

Double-click the Removable Disk icon. The files and folders on the media card appear on your screen.
3
You can edit a file and save it to another drive on your Macintosh®.
Screen
4
Quit all applications that are running stored data on the media card and drag the Removable Disk icon into the Trash icon before you remove the media card from the machine.
CAUTION CAUTION

DO NOT unplug the power cord, USB cable or remove a CompactFlash®, Memory Stick®, Memory Stick Pro™, MultiMediaCard™, SecureDigital™ or xD-Picture Card™ from the machine while it is reading the card (when the Graphic (PhotoCapture) key is flashing). You could lose your data or damage the card.
If you take out the media card while the PhotoCapture key is flashing, you must restart your Macintosh® at once before putting the same media card back into the machine. If you do not restart your Macintosh®, the data on your media card may be destroyed.
Note Note

The PhotoCapture Center® will only read one card at a time so do not put more than one media card in at a time.
While the machine is printing from PhotoCapture Center®, PhotoCapture Center® cannot perform any other operation.
