Configure the wireless settings

Plug the machine’s power cord into the AC power outlet. Turn on the machine’s power switch.

Press Menu, 7, 2, 7. Using

, choose On and press OK.

WLAN Enable

Press Stop/Exit.

Turn on your computer.

Close any applications running before configuration.

Put the supplied CD-ROM into your CD-ROM drive. The opening screen will appear automatically.

If the model name screen appears, choose your machine. If the language screen appears, choose your language.

The CD-ROM main menu will appear. Click Initial Installation.

Note

If this window does not appear, use Windows^® Explorer to run the start.exe program from the root folder of the Brother CD-ROM.

Click Wireless LAN Setup Wizard.

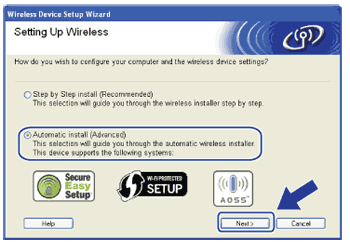

Choose Automatic install (Advanced) and click Next.

Confirm the on-screen message and click Next.

Press Menu, 7, 2, 3 for SES/WPS/AOSS.

This feature will automatically detect which mode (SecureEasySetup™, Wi-Fi Protected Setup or AOSS™) your access point uses to configure your machine.

Note

If your wireless access point supports Wi-Fi Protected Setup (PIN Method) and you want to configure your machine using the PIN (Personal Identification Number) Method, see Using the PIN Method of Wi-Fi Protected Setup.

The machine searches for an access point that supports SecureEasySetup™, Wi-Fi Protected Setup or AOSS™ for 2 minutes.

Put your access point in the SecureEasySetup™ mode, Wi-Fi Protected Setup mode or AOSS™ mode, depending on what is supported by your access point. Please refer to the instruction manual that came with your access point. You will see Connecting AOSS, Connecting SES or Connecting WPS on the LCD while the machine searches your access point.

If the LCD shows Connected, the machine has successfully connected to your access point/router. You can now use your machine in a wireless network.

If the LCD shows Connection Error, a session overlap has been detected. The machine has detected more than one access point/router on your network with the SecureEasySetup™ mode, the Wi-Fi Protected Setup mode or AOSS™ mode enabled. Make sure that only one access point/router has the SecureEasySetup™ mode, the Wi-Fi Protected Setup mode or the AOSS™ mode enabled and try starting from 9 again.

If the LCD shows No Access Point, the machine has not detected your access point/router on your network with the SecureEasySetup™ mode, the Wi-Fi Protected Setup mode or AOSS™ mode enabled. Move the machine closer to your access point/router and try starting from 9 again.

If the LCD shows Connection Fail, the machine has not successfully connected to your access point/router. Try starting from 9 again. If the same message is indicated again, reset the machine back to the default factory settings and try again. (For resetting, see Restoring the network settings to factory default.)

LCD messages when using the SES/WPS/AOSS control panel menu

LCD shows	Connection status	Action
Setting WLAN	Searching or accessing the access point, and downloading settings from the access point.	—
Connecting SES Connecting WPS Connecting AOSS	Connecting the access point.	—
Connected	Connection succeeded.	—
Connection Error	Session overlap has been detected.	Check that only one router or access point has the SecureEasySetup™ mode, the Wi-Fi Protected Setup mode or AOSS™ mode enabled and try starting from step 9 again.
No Access Point	The access point detection failed.	Move the machine closer to your access point/router and try starting from step 9 again.
Connection Fail	Connection failed.	1 Try starting from step 9 again. 2 If the same message continues, reset the machine back to the factory settings and try again.

Click Next.

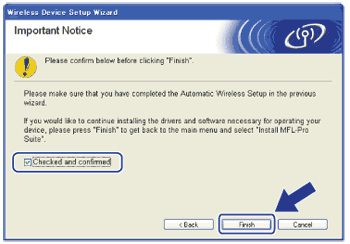

Check the box after you confirm that you have completed the wireless settings, and then click Finish.

You have completed the wireless network setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Install MFL-Pro Suite from the CD-ROM menu.
