Using the BR-Script3 Driver (MFC-7840N and MFC-7450 only) (Post Script® 3 ™ language emulation printer driver)

Note Note
•
To use the BR-Script3 printer driver, you need to set the Emulation to BR-Script 3 by using the control panel before connecting the interface cable. (See Printer Emulation Support (MFC-7840N and MFC-7450 only).)
•
The BR-Script3 printer driver does not support the PC-Fax Sending.
•
For network users, see the Network User’s Guide for installation steps.
You need to install the BR-Script3 printer driver using the following instructions.
Note Note

If you use a USB cable and Mac OS®, only one printer driver for a machine can be registered in Printer Setup Utility (Print Center for Mac OS® 10.2.X users). If a Brother Laser driver is already listed in the Printer list, you will need to delete it and then install the BR-Script3 printer driver.
For Mac OS® 10.2.X to 10.4.X
1

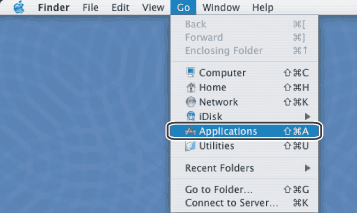

Choose Applications from the Go menu.
Graphic
2

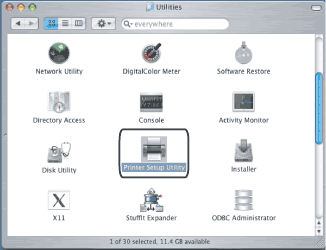

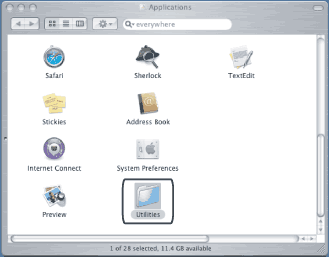

Open the Utilities folder.
Graphic
3
Open the Printer Setup Utility icon. For Mac OS® X 10.2 X users, open the Print Center icon.
Graphic
4

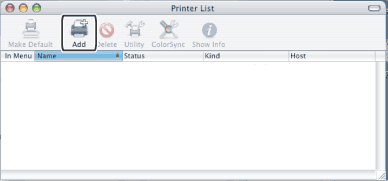

Click Add.
Graphic
For Mac OS® 10.2.4 to 10.3 users, go to 5. For Mac OS® 10.4.X users, go to 6.
5

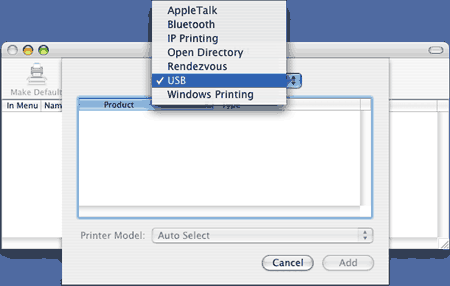

Choose USB.
Graphic
6

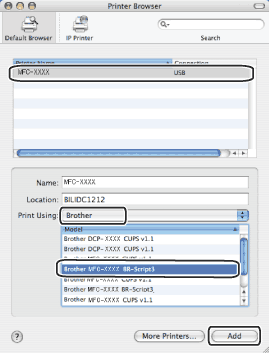

Choose the model name and make sure that Brother in Printer Model (Print Using) and the model name which shows BR-Script in Model Name (Model) are selected, and then click Add.
For Mac OS® 10.2.4 to 10.3 users:
Graphic
For Mac OS® 10.4.X:
Graphic

7
Choose Quit Printer Setup Utility from the Printer Setup Utility menu.
Graphic
Graphic
For Mac OS®X 10.5
1
Choose System Preference from the Apple menu.
Screen
2

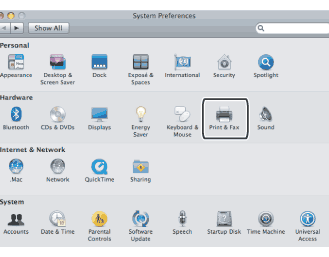

Click the Printer & Fax icon.
Screen
3

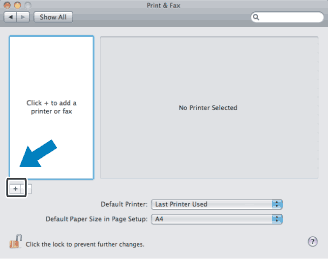

Click + button which is located below the Printers section.
Screen
4

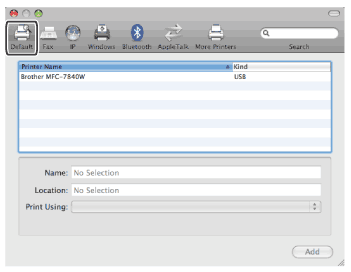

Click the Default icon which is located at the top of the dialog box.
Screen
5

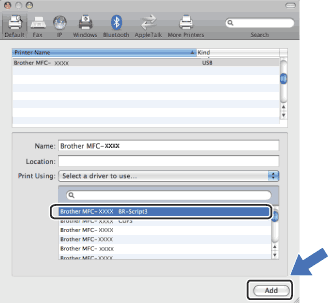

Choose your machine from the Printer Name list and Select a driver to use... in Print Using.
Screen
6
Choose the model name which shows BR-Script in Print Using, and then click Add.
Screen
7

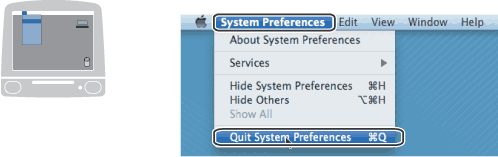

Choose Quit System Preferences from the System Preferences menu.
Screen
