Scan Plastic Cards

1
Load a plastic card (see Loading Business Cards and Plastic Cards).
Note Note
Load only one plastic card at a time.
2
Click the Graphic (ControlCenter4) icon in the task tray and then select Open from the menu.
The ControlCenter4 window will appear.
Note Note
You can also start ControlCenter4 by doing one of the following:
•
(Windows® XP, Windows Vista®)
Double-click the Graphic (ControlCenter4) icon in the task tray.
•
Click ControlCenter4 located in Start/All Programs/Brother/ADS-XXXXX (where XXXXX is your model name).
3
Select the Scan tab.
Screen
4

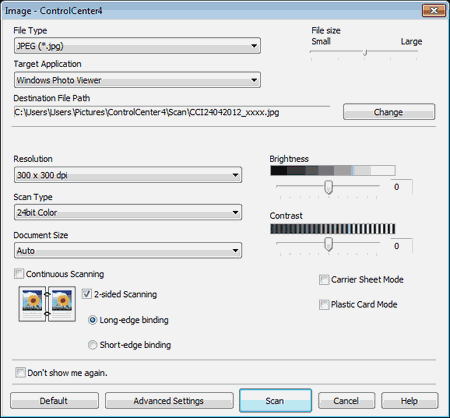

Click the button you want to use (Graphic (Image), Graphic (OCR), Graphic (E-mail), or Graphic (File)). The setting dialog box will appear (the example below uses Image).
Screen
5
Check the Plastic Card Mode check box.
6
Change other settings if needed (see Change Scan Settings (ControlCenter4) (Windows®)).
7
Click the Scan button.
The machine starts scanning.
Important Important
If a feed error should occur while scanning, open the front cover and carefully remove the plastic card in order to prevent damage to the card.
Note Note
•
Check the Don’t show me again. check box not to show the setting dialog box again.
•
Plastic Card Mode automatically uses these settings:
Resolution: 600 x 600 dpi
Document Size: 2 in 1 (Business Card)
2-sided Scanning: On (Short-edge binding)
Auto Deskew: Off
Multifeed Detection: Off
Auto Image Rotation: Off
Original Layout
Scan Result
Graphic
Graphic
