Parts Description

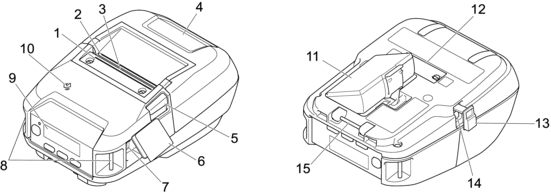

RJ-3235B/RJ-3255WB

  1. Upper Tear Bar
  2. Lower Tear Bar
  3. Paper Exit Slot
  4. Roll Compartment Cover
  5. Roll Cover Release Lever
  6. Interface Cover
  7. USB Type-C® Port
  8. Shoulder Strap Slots
  9. Control Panel
  10. Near-Field Communication (NFC) Sensor
  11. Rechargeable Li-ion Battery Compartment
  12. Docking Station Terminal Cover
  13. DC Connector Cover
  14. DC Connector
  15. Belt Clip Hook

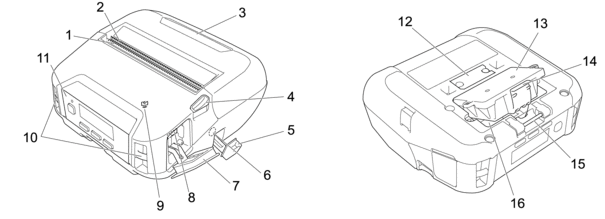

RJ-4235B/RJ-4255WB

  1. Upper Tear Bar
  2. Lower Tear Bar
  3. Roll Compartment Cover
  4. Roll Cover Release Lever
  5. DC Connector Cover
  6. DC Connector
  7. Interface Cover
  8. USB Type-C Port
  9. Near-Field Communication (NFC) Sensor
  10. Shoulder Strap Slots
  11. Control Panel
  12. Docking Station Terminal Cover
  13. Rechargeable Li-ion Battery Cover *1
  14. Rechargeable Li-ion Battery Cover Latch
  15. Belt Clip Hook
  16. Rechargeable Li-ion Battery Compartment
*1
For the model not include the battery
