Install the Mounting Arm on the Charging Cradle (Optional: PA-CR-002A)
Optional Mounting Arms corresponding to the RAM-202U mount are offered for use with the Charging Cradle which allow a more versatile method of positioning the printer.

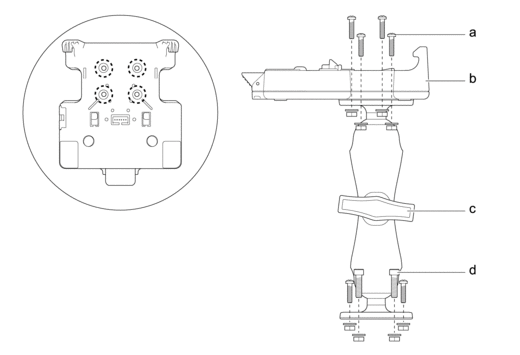

- Secure one of the mounting flanges from the movable arm to the bottom of the Charging Cradle, with the four (4) #10 - 32 or #10 - 24 screws supplied with the Mounting Arm.
- Secure the other mounting flange on the movable arm to the desired mounting surface.
- Screw to secure to the Charging Cradle
- Charging Cradle
- Tightening Clamp
- Screw to secure to mounting surface
You can use the #10 - 24 x 19.05 mm screws and associated hardware supplied in the Mounting Arm Kit, or use other hardware suitable for the mounting conditions.
