Parts Description

TD-4215D/TD-4425DN/TD-4525DN/TD-4425DNF

Front

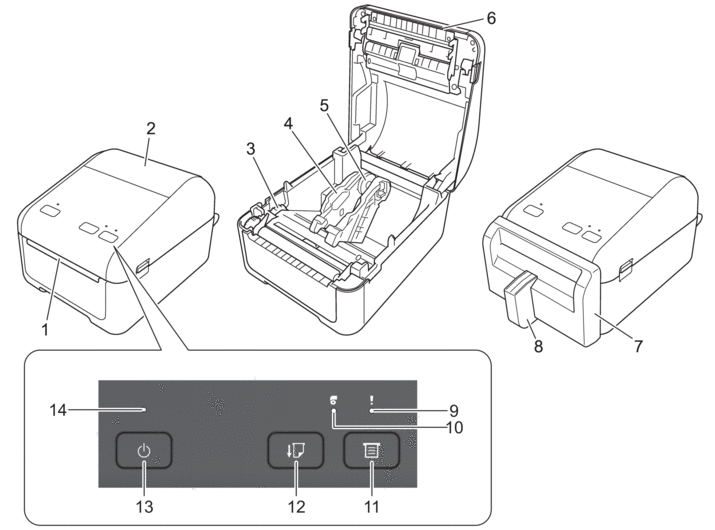

  1. Label Exit Slot
  2. Roll Compartment Cover
  3. Adjuster Dial
  4. Roll Guide
  5. Media Roll Holder
  6. Tear Bar
  7. Linerless Cutter Unit (TD-4425DNF)
  8. Label Support (TD-4425DNF)
  9. Status LED
  10. Roll LED
  11. image (Function) Button
  12. image (Feed) Button
  13. image (Power) Button
  14. Power LED
To pause printing, press any button except image (Power). Press the button again to resume printing. Printing can be paused only after each full page has been printed and cannot be paused on the final page or between pages.

Rear

TD-4215D

TD-4215D

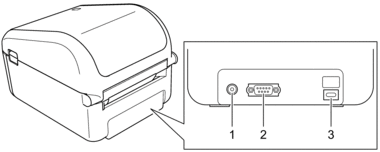

  1. Power Port
  2. Serial Port
  3. USB Port (Type-C)

TD-4425DN/TD-4525DN/TD-4425DNF

TD-4425DNTD-4525DNTD-4425DNF

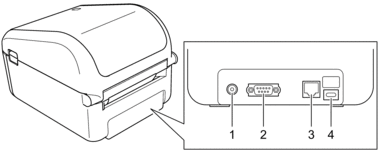

  1. Power Port
  2. Serial Port
  3. LAN Port
  4. USB Port (Type-C)

TD-4455DNWB/TD-4555DNWB/TD-4555DNWBF

Front

  1. Label Exit Slot
  2. Roll Compartment Cover
  3. Adjuster Dial
  4. Roll Guide
  5. Media Roll Holder
  6. Tear Bar
  7. Linerless Cutter Unit (TD-4555DNWBF)
  8. Label Support (TD-4555DNWBF)
  9. LCD
  10. Status LED
  11. Roll LED
  12. OK Button
  13. image (Down) Button
  14. image (Up) Button
  15. image (Back) Button
  16. Menu Button
  17. image (Feed) Button
  18. image (Power) Button
  19. Power LED
To pause printing, press any button except image (Power), image (Up), or image (Down). Press the button again to resume printing. Printing can be paused only after each full page has been printed and cannot be paused on the final page or between pages.

Rear

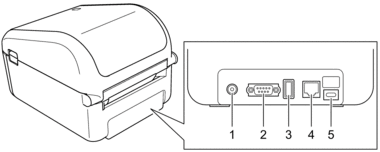

  1. Power Port
  2. Serial Port
  3. USB Host Port (Type-A)
  4. LAN Port
  5. USB Port (Type-C)
