Print and Confirm Dump Data

Set your printer to Dump Mode, and then restart it. Dump Mode allows you to print and review the data received from the printer.

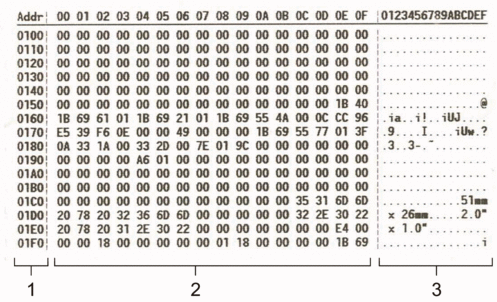

Example:


The layout is landscape orientation and shown in order of Address, Hexadecimal, and ASCII.

  1. Address
  2. Hexadecimal
  3. ASCII

TD-4215D/TD-4425DN/TD-4525DN/TD-4425DNF

  1. Load a 58 mm Media Roll into the printer.
  2. Press and hold image to turn off the printer.
  3. Press and hold image, image, and image for five seconds.
  4. Press image two times, and then press OK.
  5. Press image.
    The printer starts printing after rebooting.
    To resume normal printing, turn the printer off and then on again.

TD-4455DNWB/TD-4555DNWB/TD-4555DNWBF

  1. Connect the printer to the computer using a USB cable.
  2. Turn the printer on.
    Make sure the printer is in Standby Mode.
  3. Load a 58 mm Media Roll into the printer.
  4. Press Menu.
  5. Press image or image to select the following:
    1. Select [Administration]. Press OK.
    2. Select [Dump Mode]. Press OK.
  6. Follow the on-screen instructions.
  7. When the printer's LCD displays a processing message, the printer starts printing automatically. If it does not print, press image to print the dump data.
    To resume normal printing, turn the printer off and then on again.

TD-4215D/TD-4425DN/TD-4525DN/TD-4455DNWB/TD-4555DNWB/TD-4425DNF/TD-4555DNWBF

To set the printer to Dump Mode using the BRConfiguration Tool.

For more information about the BRConfiguration Tool, go to the BRConfiguration Tool Guide at support.brother.com/g/s/es/htmldoc/brconfiguration/eng/index.html.

To resume normal printing, turn the printer off and then on again.
