Home > Standalone Printing > Call Up the Transferred Template on the Printer's LCD and Print > Print a Template Linked to a Database
Print a Template Linked to a Database
TD-2350D/TD-2350DF
- Make sure the LCD is in the Template List Screen as shown below.
If it is not, set it to the Template List Screen.
- Press Menu.
- Press
or
to select [Settings]. Press OK.
- Press
or
to select [Home Screen]. Press OK.
- Press
or
to select [Template List Screen]. Press OK.
- Press
or
to select a template, and then press OK.
- Press
or
to select the database record, and then press OK.
- Press
and
to set the number of labels you want to print.
- NOTE
-
To change print number of labels for future use, press Menu and go to [Template Settings] and set the [Confirm Print] option to [On].
The next time you print using this template, the print settings screen appears, allowing you to change the number of labels using
and
.
- To display a print preview, press Menu twice, and then press OK.
- To display the object in the template, press Menu once, and then press OK.
TD-2320DSA/TD-2350DSA
- If the LCD is not in Template List Screen or in Template Touch Screen, as shown, follow the steps below:

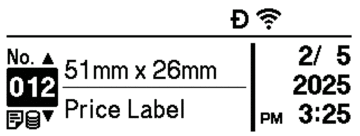

Template List Screen

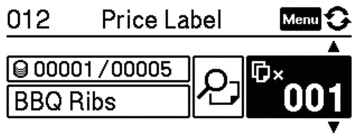

Template Touch Screen
- Press Menu.
- Press
or
to select [Settings]. Press OK.
- Press
or
to select [Home Screen]. Press OK.
- Press
or
to select [Template List Screen] or [Template Touch Screen]. Press OK.
- Press
or
to select a template, and then press OK.
The search function helps you select the template and the database. For more information, see Related Topics: Use the Search Function to Find a Template or Database in Template List Mode. - Press
or
to select the database record, and then press OK.
The search function helps you select the template and the database. For more information, see Related Topics: Use the Search Function to Find a Template or Database in Template List Mode. - Press
and
to set the number of labels you want to print.
- NOTE
-
To change print number of labels for future use, press Menu and go to [Template Settings] and set the [Confirm Print] option to [On].
The next time you print using this template, the print settings screen appears, allowing you to change the number of labels using
and
.
- To display a print preview, press
.
- To display and edit the objects in the template, press
.
- Press
,
, and OK to select an object.
- Touch the on-screen button or press the printer's numerical keys to edit the object, and then press OK.
- When you have finished selecting and editing the required objects, press
to return to the print settings screen.
