How to choose the printer driver (TCP/IP)

For Mac OS X 10.3.9 to 10.4.x users

Turn on your Macintosh.

From the Go menu, choose Applications.

Open the Utilities folder.

Double-click the Printer Setup Utility icon.

Click Add.

(Mac OS X 10.3.9) Choose IP Printing.

(Mac OS X 10.4.x) Choose IP Printer.

(Mac OS X 10.3.9)

(Mac OS X 10.4.x)

(Mac OS X 10.3.9) Enter the IP address of the printer into the Printer Address box.

(Mac OS X 10.4.x) Enter the IP address of the printer into the Address box.

(Mac OS X 10.3.9)

(Mac OS X 10.4.x)

Note

•	The Printer Settings Page will allow you to confirm the IP address. To learn how to print the Printer Settings Page, see Printing the Printer Settings Page.
•	When specifying the Queue Name (Queue), use the PostScript^® service "BRNxxxxxxxxxxxx_AT" for Macintosh. Where "xxxxxxxxxxxx" is your machine's MAC Address (Ethernet Address).

From the Printer Model (Print Using) pop-up menu, choose your model. For example, choose Brother HL-5370DW BR-Script3.

(Mac OS X 10.3.9)

(Mac OS X 10.4.x)

Click Add and the printer will be available from the Printer List. The printer is now ready to print.

For Mac OS X 10.5.x

1	Turn on your Macintosh.
2	Choose System Preferences from the Apple menu.
3	Choose Print & Fax.

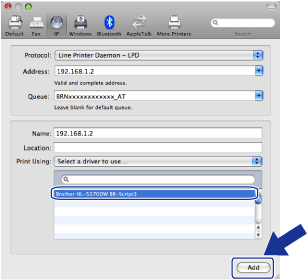

4	Click + which is located below the Printers section.
5	Choose IP.
6	Choose Line Printer Daemon - LPD from the Protocol list.
7	Enter the TCP/IP address or DNS Name of the printer into the Address box. Note When specifying the Queue, use the PostScript^® service "BRNxxxxxxxxxxxx_AT" for Macintosh. Where "xxxxxxxxxxxx" is your machine's MAC Address (Ethernet Address).
8	From the Print Using pop-up menu, choose your model. For example, choose Brother HL-5370DW BR-Script3.
9	Click Add and the printer will be available from the Printers. The printer is now ready to print.
