1 About this Printer

Carton components

When you unpack the printer, make sure that you have all of the following parts.
Graphic

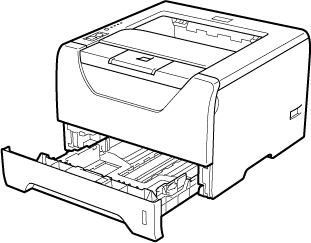

Printer
Graphic
Quick Setup Guide
Graphic
CD-ROM
Graphic
AC Power Cord
Graphic
Drum Unit and Toner Cartridge Assembly

Interface cable

The interface cable is not a standard accessory. Purchase the appropriate cable for the interface you are using.
•
USB cable
Please make sure you use a USB 2.0 interface cable that is no longer than 6 feet (2.0 meters).
DO NOT connect the interface cable at this time. Connecting the interface cable is done during the printer driver installation process.
Make sure that you connect it to the USB port of your computer and not to a USB port on a keyboard or non-powered USB hub.
Third party USB ports are not supported by Macintosh.
•
Parallel cable
DO NOT use a parallel interface cable that is longer than 6 feet (2.0 meters).
Use a shielded interface cable that is IEEE 1284-compliant.
•
Network cable (For HL-5350DN and 5370DW only)
Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet Network.
