8 Control panel features

Overview

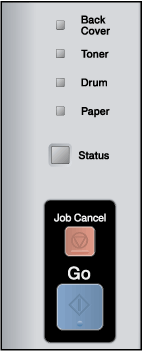

HL-5350DN and HL-5370DW have five LEDs (Back Cover, Toner, Drum, Paper, Status) and two buttons (Job Cancel and Go) on the control panel.

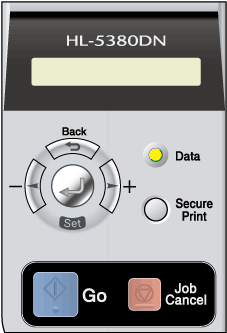

HL-5380DN has one back lit Liquid Crystal Display (LCD), seven buttons and two Light Emitting Diodes (LEDs) on the control panel. The LCD is a 16 character single line display.
Graphic
Graphic
With the control panel you can do the following:

Change the print server settings using the control panel (For HL-5380DN)
See NETWORK menu (For HL-5380DN).

Print the Printer Settings Page
See Printing the Printer Settings Page.

Reset the network settings to the factory default
See Reset the network settings to the factory default.

Enable or Disable the wireless network (For HL-5370DW)
See Enabling or disabling the wireless network (For HL-5370DW).
