Print Data Directly from a USB Flash Drive or Digital Camera Supporting Mass Storage
- Make sure your digital camera is turned on.
- Your digital camera must be switched from PictBridge mode to Mass Storage mode.
- IMPORTANT
- To prevent damage to your machine, DO NOT connect any device other than a digital camera or USB flash drive to the USB direct interface.

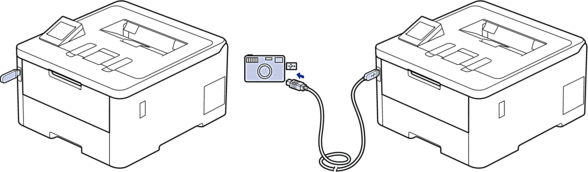

USB Port Location (Front View)

- Connect your USB flash drive or digital camera to the USB direct interface. The LCD displays the [Checking Image] message.
- If an error occurs, the USB menu does not appear on the LCD.
- When the machine is in Deep Sleep mode, the LCD does not display any information even if you connect a USB flash drive to the USB direct interface. Press any button on the control panel to wake up the machine.
- If your machine's Secure Function Lock is On, you may not be able to print from a USB flash drive or digital camera.
- Press
or
to select the file you want, and then press it.
To print an index of the files stored on the USB flash drive or digital camera, press[Index Print] on the touchscreen. Press [Mono Start] or [Colour Start] to print the data.
- Do one of the following:
- To change the settings, press [Print Settings]. Go to the next step.
- If you want to use the default settings, enter the number of copies, and then press [Mono Start] or [Colour Start].
- Select the print settings you want to change:
[Print Quality]
[Tray Use]
[Paper Type]
[Paper Size]
[Multiple Page]
[Orientation]
[2-sided]
[Collate]
[PDF Print Options]
[PDF Fit to Page]
Depending on the file type, some of these settings may not appear. - Press [OK].
- Enter the number of copies you want.
- Press [Mono Start] or [Colour Start] to print the data.
- Press
.
- IMPORTANT
- DO NOT remove the USB flash drive or digital camera from the USB direct interface until the machine has finished printing.
