How to select the printer driver (TCP/IP)

1
Turn the power of the printer ON.
2
From the Go menu, select Applications.
3
Open the Utilities folder.
4
Double click the Printer Setup Utility icon. (Mac OS® X 10.2.x users, click the Print Center icon.)
5
Click Add.
6

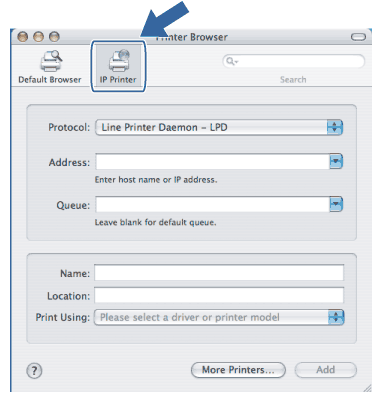

Select IP Printer.
(Mac OS® X 10.2.4 to 10.3.x)
Screen
(Mac OS® X 10.4)
Screen
7

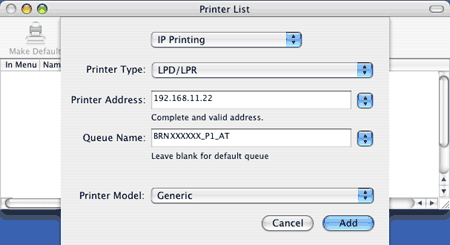

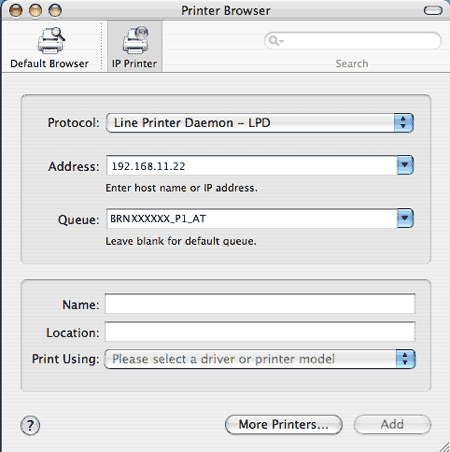

Enter the IP address of the printer into the Address box.
(Mac OS® X 10.2.4 to 10.3.x)
Screen
(Mac OS® X 10.4)
Screen
Note Note
•
The Printer Settings Page will allow you to confirm the IP address.To learn how to print the Printer Settings Page, see How to print the Printer Settings Page.
•
When specifying the Queue Name, use the value brnxxxxxx_p1_at where xxxxxx are the last 6 digits of the Ethernet address.
8

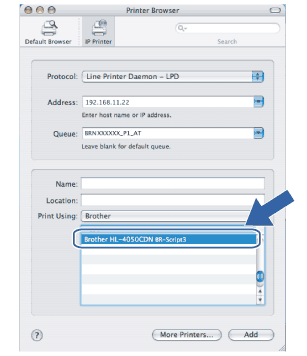

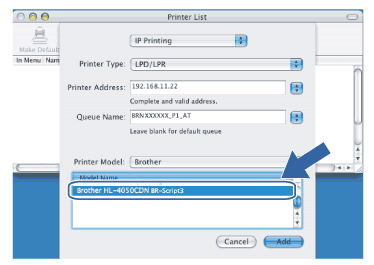

From the Print Using pull-down list select your model. For example, select Brother HL-4050CDN BR-Script3.
(Mac OS® X 10.2.4 to 10.3.x)
Screen
(Mac OS® X 10.4)
Screen
9
Click Add and the printer will be available from the Printer List.
