Using the BRAdmin Professional 3 utility to change the print server settings (For Windows®)

Note Note
•
Please use the latest version of the BRAdmin Professional 3 utility that is available as a download from http://solutions.brother.com/. This utility is only available for Windows® users.
•
If you are using a firewall function of anti-spyware or antivirus applications, temporarily disable them. Once you are sure that you can print, configure the software settings following the instructions.
•
Node Name: Node name appears in the current BRAdmin Professional 3 window. The default node name of the print server in the machine is “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network. (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address.)
1
Start the BRAdmin Professional 3 utility (from Windows® 2000/XP, Windows Vista® or Windows Server® 2003/2008), by clicking Start/All Programs1/Brother Administrator Utilities/Brother BRAdmin Professional 3/BRAdmin Professional 3.
1
Programs for Windows® 2000 users

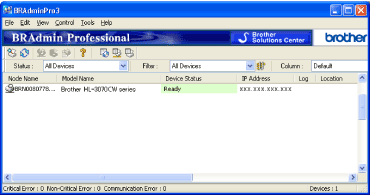

Screen
2
Choose the print server which you want to configure.
3
Choose Configure Device from the Control menu.
4
Enter a password if you have set one. The default password is “access”.
5
You can now change the print server settings.
Note Note
•
If the print server is set to its factory default settings without using a DHCP/BOOTP/RARP server, the device will appear as APIPA in the BRAdmin Professional 3 utility screen.
•
You can find the node name and MAC Address / Ethernet Address (IP Address above) by printing out the Network Configuration page. See Printing the Network Configuration page.
