Configuration with an access point that supports SecureEasySetup™

For Windows® 2000/XP or Windows Vista™

 IMPORTANT

If you have previously configured the wireless settings of the machine, you must reset the network LAN settings before you can configure the wireless settings again. Press Menu, 7, 0 for Factory Reset, Reset and choose Yes to accept the change. The machine will restart automatically.
1
Turn on the machine by plugging in the power cord.
2
Press Menu, 7, 2, 6. Using Bsymbol.utri or Bsymbol.dtri, choose On and press OK.
72.WLAN
  6.WLAN Enable
Bsymbol.utri    On
Bsymbol.dtri    Off
Select Bsymbol.utriBsymbol.dtri or OK
3
Turn on your computer.
Note Note

Before configuration, if you are using Personal Firewall software, disable it. Once you are sure that you can print after the installation, restart your Personal Firewall software.
4
Put the supplied CD-ROM into your CD-ROM drive. If the model name screen appears, choose your machine. If the language screen appears, choose your language.
5
The CD-ROM main menu will appear. Click Install Other  Drivers or Utilities.
(For US)
Screen
(For UK)
Screen
Note Note

If this window does not appear, use Windows® Explorer to run the start.exe program from the root folder of the Brother CD-ROM.
6
Click Wireless LAN Setup Wizard.
Screen
7
Read the Important Notice and click Next.
Screen
8

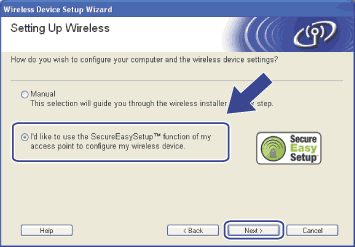

Make the following selection and click Next.
Screen
9
Confirm the on-screen message and click Next.
Screen
10
Refer to the instruction manual that came with your access point to set the SecureEasySetup™ mode of your access point.
11
Put the machine in SecureEasySetup™ mode.
Press Menu, 7, 2, 3 for SecurEasySetup.
Note Note

If the LCD shows Connection NG for USA or Connection error for UK, please try again.
12

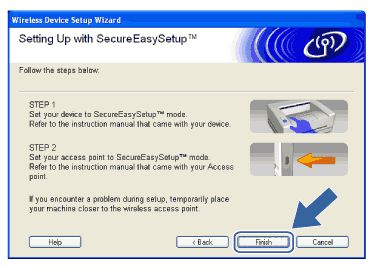

Click Finish.
Screen
13
The configuration is finished. Relocate the machine to a location that is within range of your access point.
14
You have completed the wireless setup. If you would like to continue installing drivers and software necessary for operating your device, please choose Install MFL-Pro Suite from CD-ROM menu.
