For Mac OS® X 10.2.4 to 10.4x

1
Turn the power of the machine ON.
2
From the Go menu, select Applications.
3
Open the Utilities folder.
4
Double click the Printer Setup Utility icon. (Mac OS® X 10.2.x users, click the Print Center icon.)
5
Click Add.
6

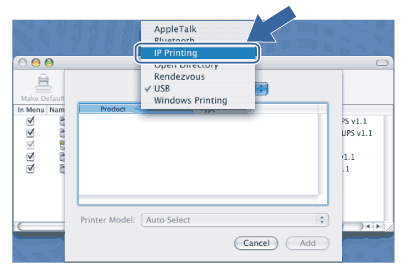

(Mac OS® X 10.2.4 to 10.3.x) Select IP Printing.

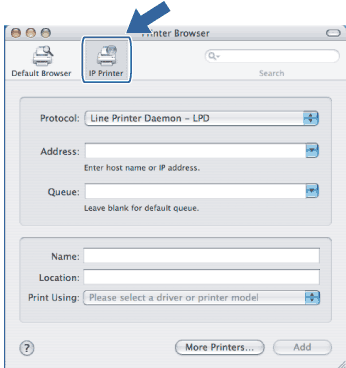

(Mac OS® X 10.4) Select IP Printer.
(Mac OS® X 10.2.4 to 10.3.x)
Screen
(Mac OS® X 10.4)
Screen
7

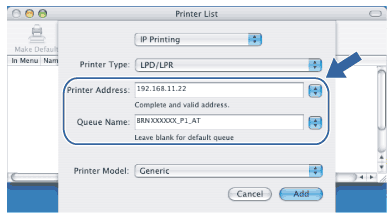

(Mac OS® X 10.2.4 to 10.3.x) Enter the IP address of the printer into the Printer Address box.

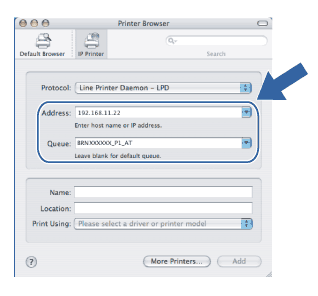

(Mac OS® X 10.4) Enter the IP address of the printer into the Address box.
(Mac OS® X 10.2.4 to 10.3.x)
Screen
(Mac OS® X 10.4)
Screen
Note Note
•
The Network Configuration List will allow you to confirm the IP address. For more information on how to print the configuration page, see Printing the Network Configuration List.
•
When specifying the Queue Name, use the value brnxxxxxx_p1_at where xxxxxx are the last 6 digits of the Ethernet address.

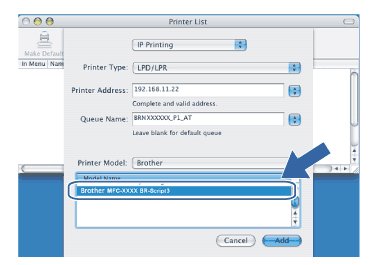

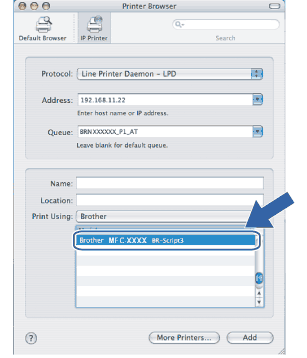

8
From the Printer Model pull-down list select your model. For example, select Brother MFC-9440CN BR-Script3.
(Mac OS® X 10.2.4 to 10.3.x)
Screen
(Mac OS® X 10.4)
Screen
9
Click Add and the printer will be available from the Printer List.
