How to choose the BR-Script 3 printer driver (TCP/IP)

For Mac OS® X 10.5

1
Turn the power of the machine ON.
2
From the Apple menu, choose System Preferences.
3
Click Print & Fax.
4
Click + button to add your machine.
5
Choose IP.
Screen
6

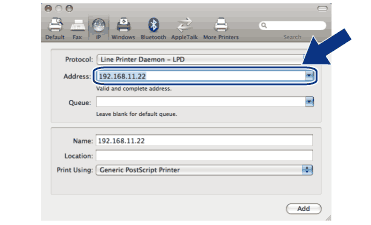

Enter the IP address of the printer into the Address box.
Screen
Note Note
•
The Network Configuration List will allow you to confirm the IP address. For more information on how to print the configuration page, see Printing the Network Configuration List.
•
When specifying the Queue name, use the value "brnxxxxxxxxxxxx_at".
7

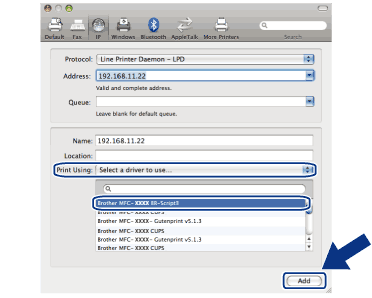

From the Print Using pull-down list choose Select a driver to use, and then from the printer model pull-down list choose your model. For example, choose Brother MFC-7840W BR-Script3, and then click Add.
Screen
8

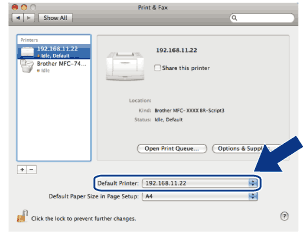

From the Default Printer pull-down list choose your model to set as the default printer. The printer is now ready.
Screen
