7
PhotoCapture Center™
(Not available for MFC-3360C)
CAUTION
DO NOT start your PC with a media card installed in the media drive of the machine. You could lose your data or damage the card.
For USB cable users
1
Put a CompactFlash
®
1
, Memory Stick
®
, Memory Stick Pro™, MultiMediaCard™, SecureDigital™ or xD-Picture Card™
2
into your machine.
1
This product supports CompactFlash
®
type1.
2
This product supports xD-Picture Card™ Type M/Type H (Large Capacity).
2

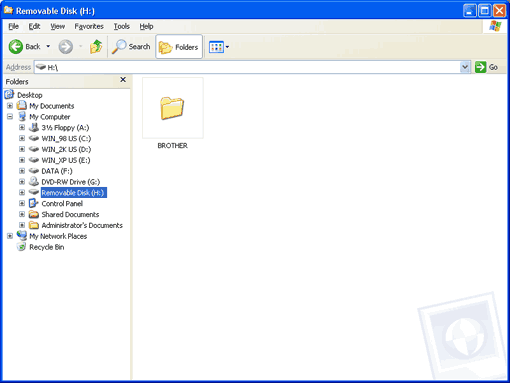

In Windows
®
Explorer, click the
Removable Disk
icon
1
. The files and folders on the media card appear on your PC screen.
You can edit a file and save it to another drive on your PC.
1
If you are using Windows
®
XP and you create a name for the volume label of the media card, this name appears instead of ‘
Removable Disk
’.
When you take out a media card, do the following to prevent damage to the media card:
1
In Windows
®
Explorer, right-click the removable disk icon and choose
Eject
.
2
Wait until the
(
PhotoCapture
) key stops blinking before taking out the media card.
