Using the BRAdmin Professional utility and the TCP/IP protocol to configure your network printer (for Windows®)
How to configure your machine using the BRAdmin Professional utility
1
Start the BRAdmin Professional utility (from Windows® 98/98SE/Me/2000/XP/XP Professional x64 Edition), by clicking Start/Programs/Brother Administrator Utilities/Brother BRAdmin Professional Utilities/BRAdmin Professional.
2
Select TCP/IP in the left frame of the main BRAdmin window.
3
Select Search Active Devices from the Devices menu. BRAdmin Professional will search for new devices automatically.
4
Double click the unconfigured device.
5
Enter the IP address, Subnet Mask and Gateway (if needed) of your print server.
6
Click OK.
7

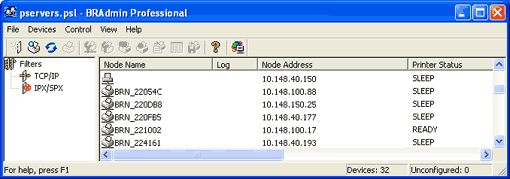

With the correctly programmed IP address, you will see the Brother print server in the device list.
