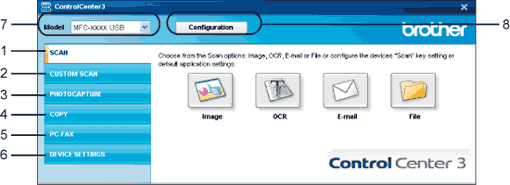

ControlCenter3 is a software utility that lets you quickly and easily access your often used applications. Using ControlCenter3 eliminates the need to manually launch specific applications. ControlCenter3 has the following operations:
| 1 |
Scan directly to a file, E-mail, word processor or graphics application of your choice. (1)
|
| 2 |
Access to the Custom Scan settings. Custom Scan buttons let you configure a button to meet your own application needs. (2)
|
| 3 |
Access to the advanced features of PhotoCapture Center ®. (3)
|
| 4 |
Access the Copy features available via your PC. (4)
|
| 5 |
Access the ‘PC-FAX’ applications available for your device. (5)
|
| 6 |
Access the settings available to configure your device. (6)
|
| 7 |
You can choose which machine ControlCenter3 will connect with from the Model drop-down list. (7)
|
| 8 |
You can also open the configuration window for each function and a link to the Brother Solutions Center by clicking the Configuration button. (8)
|
Note
| • |
To be able to choose another connected model from the Model drop-down list, you must have the MFL-Pro Suite Software installed on your PC for that model.
|
| • |
For the Modern user interface, you need to install Macromedia Flash Player 8 or greater. If you do not have Flash Player 8 or greater, you will be prompted so you can download the latest Flash Player.
|
| • |
The Modern user interface is not supported in Windows® XP Professional x64 Edition.
|
Switching the user interface
You can choose the Modern or Classic user interface for ControlCenter3.
| 1 |
To switch the user interface, click Configuration button and select SETUP then SKIN SELECT.
|
| 2 |

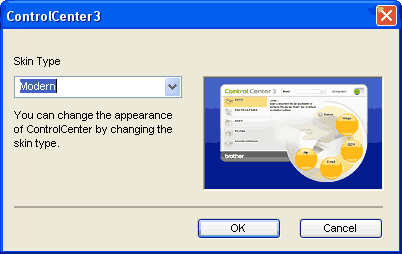

From the SKIN SELECT dialog, you can choose your preferred user interface.
|
