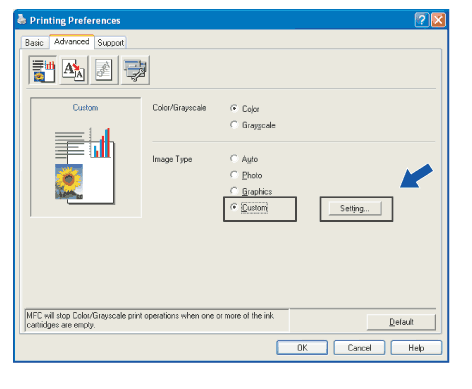

Advanced tab

Change the tab settings by clicking one of the following icons:

•	Color (1)
•	Scaling (2)
•	Watermark (3)
•	Device Options (4)

Note

To return to the default settings, click Default.

Color

Color/Grayscale

This selection allows a color document to be printed in black and white using grayscale.

Page Top

Image Type

The printer driver will choose the most suitable color matching and half tone method, depending on your image type. Generally, text and business graphics are printed vividly and photographic images are printed softly.

•	Auto The printer driver automatically chooses the image type.
•	Photo Use for photographic images.
•	Graphics Use for documents that contain text or business graphics (charts or clip art).
•	Custom If you want to choose the color matching and halftone method, choose this mode.

Page Top

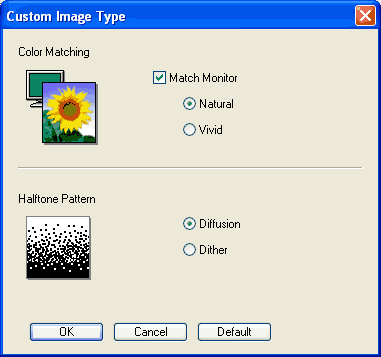

Custom Image Type

You can choose the color matching method manually. Choose the best one for your document.

•

Match Monitor

Color is adjusted to get the closest color match with the PC monitor.

•	Natural: Use for photographic images. The color is adjusted to print more natural colors.
•	Vivid: Use for business graphics such as charts, graphics and text. The color is adjusted to print more vivid colors.

•

Halftone Pattern

The machine can use two methods (Diffusion or Dither) to arrange dots to express halftones. There are some predefined patterns and you can choose which one to use for your document.

•	Diffusion: Dots are put at random to create the halftones. Use for printing photographs that have delicate shades and graphics.
•	Dither: Dots are arranged in a pre-defined pattern to make halftones. Use for printing graphics that have definite color boundaries or for printing charts such as business charts.

Note

Some halftone settings cannot be chosen with certain combinations of Media Type and Quality settings.

Page Top
