Clean the Machine's Printer Platen

WARNING: Be sure to unplug the machine from the electrical socket before cleaning the printer platen to avoid an electrical shock.

Unplug the machine from the electrical socket.
If the paper support flap is open, close it, and then close the paper support.
Pull the paper tray (1) completely out of the machine.
Lift the paper support (1), and then pull it at an angle completely out of the machine as shown by the arrow.
Squeeze both green levers together, and then lower the maintenance unit (1).

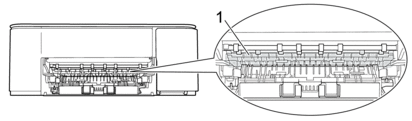

Clean the machine’s printer platen (1) and the area around it, wiping off scattered ink with a dry, soft lint-free cloth.
Raise the maintenance unit.
Put the paper support firmly back in the machine. Make sure you fit the paper support into the channels.
Slowly push the paper tray completely into the machine.
Reconnect the power cord.
