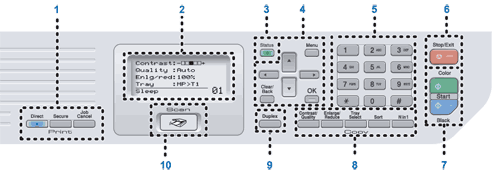

Control panel overview

Graphic
1.
Print keys:
Direct
Lets you print data from a USB flash memory drive that you can connect directly to the machine. You can also print images directly from your PictBridge compatible camera.
Secure
When using Secure Function Lock, you can switch restricted users by holding down Bsymbol.ltri as you press the Secure key. (See Turning Secure Function Lock on.)
You can print data saved in memory when you enter your four-digit password. (For details about using the Secure key, see the Software User’s Guide on the CD-ROM.)
Job Cancel
Cancels a programmed print job and clears print data in machine’s memory.
2.
LCD
Displays messages to help you set up and use your machine.
3.
Status LED
The LED will flash and change color depending on the machine’s status.
4.
Menu keys:
Menu
Lets you access the Menu to program your settings in the machine.
Clear/Back
Deletes entered data or lets you cancel the current setting.
OK
Lets you store your settings in the machine.
Bsymbol.ltri or Bsymbol.rtri
Press to scroll backwards or forwards through menu selections.
Bsymbol.utri or Bsymbol.dtri
Press to scroll through the menus and options.
5.
Numeric keys
Use to enter information into the machine.
6.
Stop/Exit
Stops an operation or exits from a menu.
7.
Start
Color
Lets you start making copies in full color.
Black
Lets you start making copies in black & white.
8.
Copy keys:
Contrast/Quality
Lets you change the quality or contrast for the next copy.
Enlarge/Reduce
Reduces or enlarges copies.
Tray Select
Lets you change which tray will be used for the next copy.
Sort
Sorts multiple copies using the ADF.
N in 1
You can choose N in 1 copy to 2 or 4 pages onto one page.
9.
Duplex
You can choose Duplex to copy on both sides of the paper.
10.
Scan
Puts the machine in Scan mode. (For details about scanning, see the Software User’s Guide on the CD-ROM.)
