CUSTOM SCAN

The Custom Scan option lets you create your own scan options.

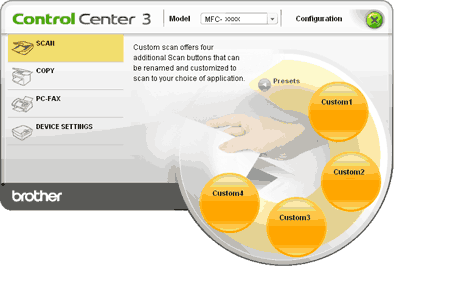

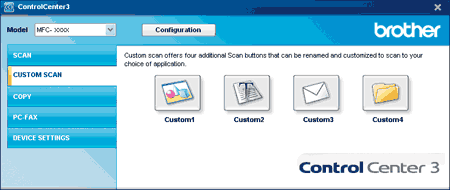

For Modern interface users, place the mouse pointer over the

and click Custom.

To customize a button, right-click the appropriate button and click ControlCenter Configuration. There are four options: Scan to Image, Scan to OCR, Scan to E-mail and Scan to File.

•	Scan to Image Lets you scan a page directly into any image viewer/editor software. You can choose any image editor application on your PC.
•	Scan to OCR Converts scanned documents into editable text files. You can choose the destination application for the editable text.
•	Scan to E-mail Attaches the scanned images to an E-mail message. You can also choose the file attachment type and create a quick send list of E-mail addresses chosen from your E-mail address book.
•	Scan to File Lets you save a scanned image to any folder on a local or network hard disk. You can also choose the file type to be used. Modern Classic

Customizing a user-defined button

To customize a button, right-click the button, then click the ControlCenter Configuration button to see the configuration window.

Scan to Image

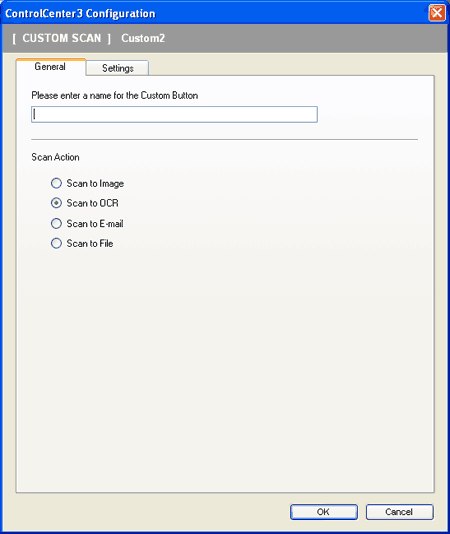

•	General tab To create the button name, enter a name in the Please enter a name for the Custom Button text field (up to 30 characters). Choose the type of scan from the Scan Action field.

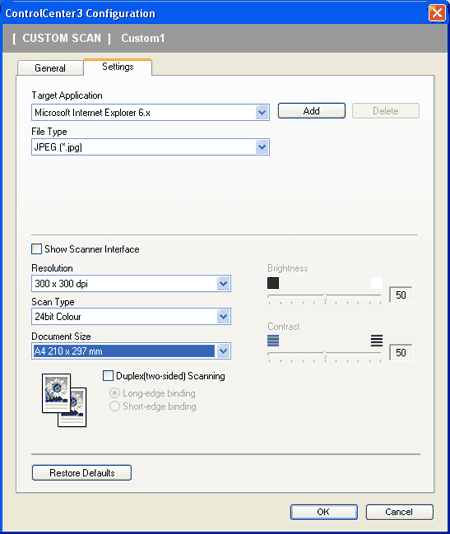

•	Settings tab Choose the Target Application, File Type, Resolution, Scan Type, Document Size, Duplex (two-sided) Scanning (if necessary), Show Scanner Interface, Brightness and Contrast settings.

Page Top

Scan to OCR

•	General tab To create the button name, enter a name in the Please enter a name for the Custom Button text field (up to 30 characters). Choose the type of scan from the Scan Action field.

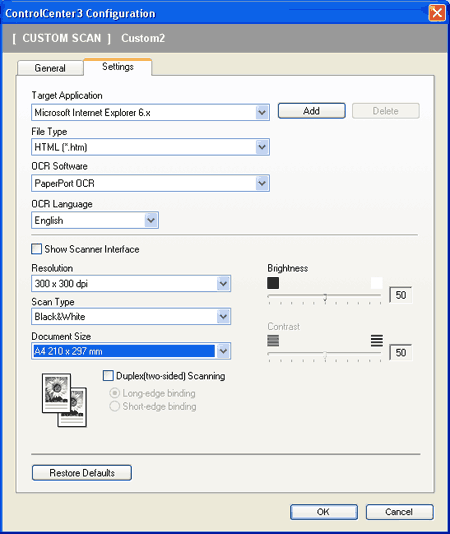

•	Settings tab Choose the Target Application, File Type, OCR Software, OCR Language, Resolution, Scan Type, Document Size, Duplex (two-sided) Scanning (if necessary), Show Scanner Interface, Brightness and Contrast settings.

Page Top

Scan to E-mail

•	General tab To create the button name, enter a name in the Please enter a name for the Custom Button text field (up to 30 characters). Choose the type of scan from the Scan Action field.
•	Settings tab Choose the E-mail Application, File Type, Resolution, Scan Type, Document Size, Duplex (two-sided) Scanning (if necessary), Show Scanner Interface, Brightness and Contrast settings.

Page Top

Scan to File

•

General tab

To create the button name, enter a name in the Please enter a name for the Custom Button text field (up to 30 characters).

Choose the type of scan from the Scan Action field.

•

Settings tab

Choose the file format from the File Type drop-down list. Save the file to the default folder which is shown in the Destination Folder box or choose your preferred folder by clicking the

icon. Check Show Folder to show where the scanned image is saved after scanning. Check Show Save As Window to specify the destination of the scanned image after every scan.

Choose the Resolution, Scan Type, Document Size, Duplex (two-sided) Scanning (if necessary), Show Scanner Interface, Brightness and Contrast settings and enter the file name if you want to change it.
