Firewall settings on your PC may reject the necessary network connection for network printing, network scanning and PC Fax. If you are using the Windows® Firewall and you installed MFL-Pro Suite from the CD-ROM, the necessary Firewall settings have already been made. If you did not install from the CD-ROM follow the instructions below to configure your Windows® Firewall. If you are using any other personal Firewall software, see the User’s Guide for your software or contact the software manufacturer.
UDP Port number information for Firewall configuration
UDP Port | Network Scanning | Network PC-Fax | Network Scanning and Network PC-Fax 1 |
External Port number | 54925 | 54926 | 137 |
Internal Port number | 54925 | 54926 | 137 |
Windows® XP SP2
| 1 | Click the start button, Control Panel, Network and Internet Connection and then Windows Firewall. Make sure that Windows Firewall on the General tab is set to On. |

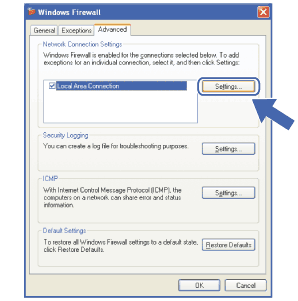

| 2 | Click the Advanced tab and Settings... button of Network Connection Settings. |
| 3 | Click the Add button. |

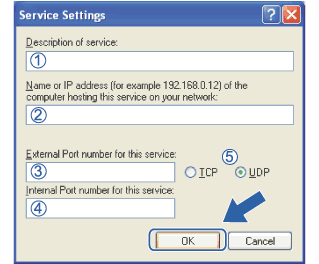

| 4 | Add port 54925 for network scanning by entering the information below: | 1. | In Description of service: Enter any description, for example “Brother Scanner”. | | 2. | In Name or IP address (for example 192.168.0.12) of the computer hosting this service on your network: Enter “Localhost”. | | 3. | In External Port number for this service: Enter “54925”. | | 4. | In Internal Port number for this service: Enter “54925”. | | 5. | Make sure UDP is selected. | | 6. | Click OK. |
|
| 5 | Click the Add button. |
| 6 | Add port 54926 for Network PC-Fax by entering the information below: | 1. | In Description of service: Enter any description, for example “Brother PC-Fax”. | | 2. | In Name or IP address (for example 192.168.0.12) of the computer hosting this service on your network: Enter “Localhost”. | | 3. | In External Port number for this service: Enter “54926”. | | 4. | In Internal Port number for this service: Enter “54926”. | | 5. | Make sure UDP is selected. | | 6. | Click OK. |
|
| 7 | If you still have trouble with your network connection, click the Add button. |
| 8 | Add port 137 for network scanning, network printing and Network PC-Fax receiving by entering the information below: | 1. | In Description of service: Enter any description, for example “Brother Network Print”. | | 2. | In Name or IP address (for example 192.168.0.12) of the computer hosting this service on your network: Enter “Localhost”. | | 3. | In External Port number for this service: Enter “137”. | | 4. | In Internal Port number for this service: Enter “137”. | | 5. | Make sure UDP is selected. | | 6. | Click OK. |
|
| 9 | Make sure that the new setting is added and is checked, and then click OK. |
