Choose the output image type from Photo, Web or Text. Resolution and Scan Type will be altered for each default setting.

The default settings are listed in the table below:

You can choose a scanning resolution from the Resolution drop-down list. Higher resolutions take more memory and transfer time, but produce a finer scanned image. The following table shows the resolutions you can choose and the available colours.

You can improve and enhance the quality of your scanned images with this selection. The Reduce Noise setting is available when using 24bit Colour and scan resolutions of 300 x 300 dpi, 400 x 400 dpi or 600 x 600 dpi.

Adjust the setting (-50 to 50) to get the best image. The default value is 0, representing an average.

You can set the Brightness level by dragging the slide bar to the right or left to lighten or darken the image. You can also enter a value in the box to set the level.

If the scanned image is too light, set a lower Brightness level and scan the document again. If the image is too dark, set a higher Brightness level and scan the document again.

You can increase or decrease the Contrast level by moving the slide bar to the left or right. An increase emphasizes dark and light areas of the image, while a decrease reveals more detail in grey areas. You can also enter a value in the box to set the Contrast.

When scanning photographs or other images for use in a word processor or other graphics application, try different settings for the contrast and resolution to see which setting best suits your needs.

Choose one of the following sizes:

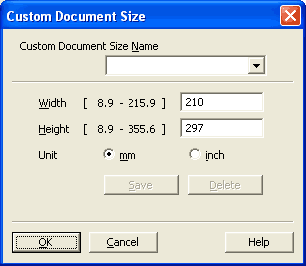

Enter the Name, Width and Height for the document.

You can choose ‘mm’ or ‘inch’ as the unit for Width and Height.
