Configuration with an access point that supports SecureEasySetup™

For Windows® 98/98SE/Me/2000/XP/XP Professional x64 Edition

 IMPORTANT

If you have previously configured the wireless settings of the machine, you must reset the network LAN settings before you can configure the wireless settings again. Press Menu, Bsymbol.utri or Bsymbol.dtri for Factory Reset and select Yes to accept the change. The machine will restart automatically.
1
Turn on the machine by plugging in the power cord.
Graphic
2
Turn on your computer.
(For Windows® 2000/XP/XP Professional x64 Edition, you must be logged on with Administrator rights.)
Note Note
•
Before configuration, if you are using personal firewall software, disable it. Once you are sure that you can print after the installation, restart your personal firewall software.
•
A wireless network connection is supported only between the Brother machine and an access point for PC’s running Windows® XP Professional x64 Edition.
3
Put the supplied CD-ROM into your CD-ROM drive. If the model name screen appears, choose your machine. If the language screen appears, choose your language.
4
The CD-ROM main menu will appear. Click Install Other Drivers or Utilities.
Screen
Note Note

If this window does not appear, use Windows® Explorer to run the setup.exe program from the root folder of the Brother CD-ROM.
5
Click Wireless LAN Setup Wizard.
Screen
6

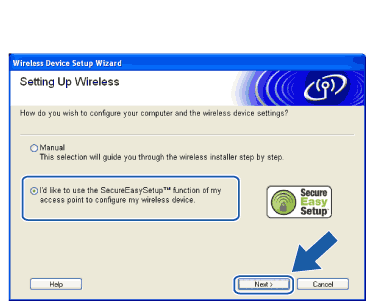

Choose I’d like to use the SecureEasySetup™ function of my access point to configure my wireless device. and click Next.
Screen
7
Read the Important Notice and click Next.
Screen
8

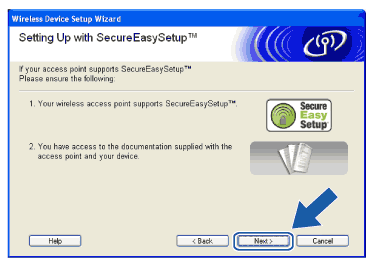

Ensure the on-screen message and click Next.
Screen
9
Refer to the instruction manual that came with your access point to set the SecureEasySetup™ mode of your access point.
10
Put the machine in SecureEasySetup™ mode.
Press Menu, Bsymbol.utri or Bsymbol.dtri for LAN and press OK. Press Bsymbol.utri or Bsymbol.dtri for Setup WLAN and then press OK. Press Bsymbol.utri or Bsymbol.dtri for SecureEasySetup and press OK.
Note Note

If the LCD shows Connection Error, please try again.
11

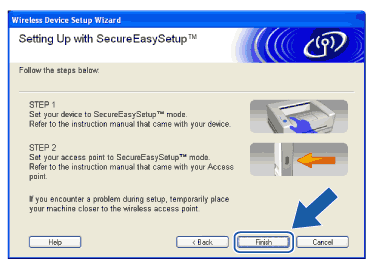

Click Finish.
Screen
12
The configuration is finished. Relocate the machine to a location that is within range of your access point.
You have completed the wireless setup. If you would like to continue installing drivers and software necessary for operating your device, please select Install MFL-Pro Suite from CD-ROM menu.
