Setting up the IP address and subnet mask

Using the BRAdmin Light utility to configure your machine as a network printer

BRAdmin Light

The BRAdmin Light utility is designed for initial setup of the Brother network connected devices. It also can search for Brother products in a TCP/IP environment, view the status and configure basic network settings, such as IP address. The BRAdmin Light utility is available for Windows® 2000/XP, Windows Vista®, Windows Server® 2003/2008 and Mac OS X 10.3.9 - 10.5.x.
Page Top

How to configure your machine using the BRAdmin Light utility

Note Note
•
Please use the BRAdmin Light utility version that was supplied on the CD-ROM of your Brother product. You can also download the latest Brother BRAdmin Light utility version from http://solutions.brother.com.
•
If you require more advanced printer management, use the latest Brother BRAdmin Professional 3 utility that is available as a download from http://solutions.brother.com. This utility is only available for Windows® users.
•
If you are using a firewall function of anti-spyware or antivirus applications, temporarily disable them. Once you are sure that you can print, re-enable them.
•
Node Name: Node Name appears in current BRAdmin Light window. The default Node Name of the print server in the machine is “BRNxxxxxxxxxxxx”. (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address.)
•
By default, no password is required. To set a password for, double-click the device you want to set a password. Click Control tab, and then click Change Password. Enter the new password.
1
Start the BRAdmin Light utility.
•
Windows® 2000/XP, Windows Vista® and Windows Server® 2003/2008
Click Start / All Programs1 / Brother / BRAdmin Light / BRAdmin Light.
1
Programs for Windows® 2000 users
•
Mac OS X 10.3.9 - 10.5.x
Double-click Macintosh HD (Startup Disk) / Library / Printers / Brother / Utilities / BRAdmin Light.jar file.
2
BRAdmin Light will search for new devices automatically.
3

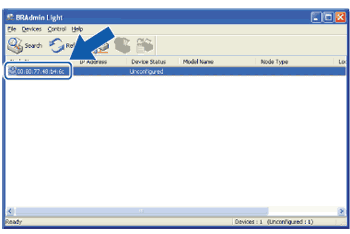

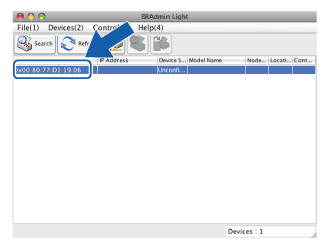

Double-click the unconfigured device.
Windows®
Screen
Macintosh
Screen
Note Note
•
If the print server is set to its factory default settings (if you don’t use a DHCP/BOOTP/RARP server), the device will appear as Unconfigured in the BRAdmin Light utility screen.
•
You can find the Node Name and MAC Address (Ethernet Address) from the machine’s control panel. See Node Name and MAC Address.
4

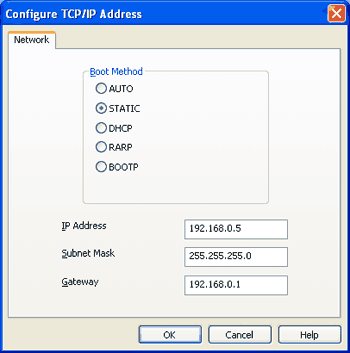

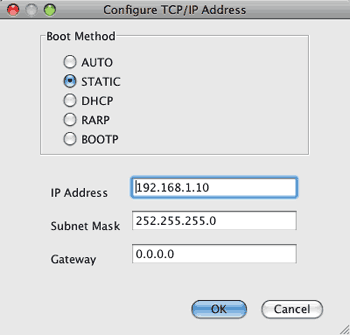

Choose STATIC from Boot Method. Enter the IP Address, Subnet Mask and Gateway (if needed) of your print server.
Windows®
Screen
Macintosh
Screen
5
Click OK.
6
With the correctly programmed IP address, you will see the Brother print server in the device list.
