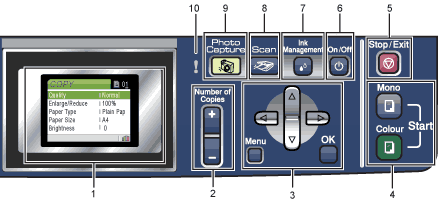

Displays messages on the screen to help you set up and use your machine.
Also, you can adjust the angle of the LCD display by lifting it.
2.
Number of Copies
Use this key to make multiple copies.
3.
Menu keys:
•
or
Press to scroll backward or forward to a menu selection.
•
or
Press to scroll through the menus and options.
•
Menu
Lets you access the main menu.
•
OK
Lets you select a setting.
4.
Start keys:
•
Colour Start
Lets you start making copies in full colour. Also lets you start a scanning operation (in colour or mono, depending on the scanning setting in the ControlCenter software).
•
Mono Start
Lets you start making copies in monochrome. Also lets you start a scanning operation (in colour or mono, depending on the scanning setting in the ControlCenter software).
5.
Stop/Exit
Stops an operation or exits from a menu.
6.
On/Off
You can turn the machine on or off.
If you turn the machine off, it will still periodically clean the print head to maintain print quality.
7.
Ink Management
Lets you clean the print head, check the print quality, and check the available ink volume.
8.
Scan
Lets you access Scan mode.
9.
PhotoCapture
Lets you access PhotoCapture Center™ mode.
10.
Warning LED
Turns red when the LCD displays an error or an important status message.
Note
Most of the illustrations in this User’s Guide show the DCP-330C.
LCD display indications
The LCD shows the current machine status when the machine is idle.
1.
Wireless Status (DCP-750CW only)
A four level indicator shows the current wireless signal strength if you are using a wireless connection.
Note
