2 Scanning

Scanning operations and the drivers used will differ depending on the operating system you are using. As default, the machine uses a TWAIN compliant driver when scanning documents from your applications.

•	For Windows^® XP Two scanner drivers are installed. A TWAIN compliant scanner driver and a Windows^® Imaging Acquisition (WIA) driver. Windows^® XP users can select either driver when scanning documents.

Note

If your PC is protected by a firewall and is unable to scan, you may need to configure the firewall settings to allow communication through port number 137 and 54925. Visit the Brother Solutions Center (http://solutions.brother.com) for more information.

Scanning a document using the TWAIN driver

Accessing the Scanner

1	Start the ScanSoft^® PaperPort^® SE software that was installed during the MFL-Pro Suite installation to scan a document.
2	Click File, then Scan. Or click the Scan button. The Scan panel appears in the left side of the screen.
3	Choose the scanner you are using from the Scanner drop-down list.

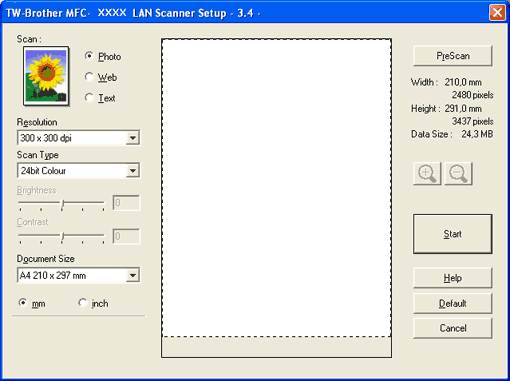

4	Click Scan. The Scanner Setup dialog box appears:
