Configuring Network Scanning

If you are using a different machine to the one that was originally registered to your PC during the installation of MFL-Pro Suite software (see the Quick Setup Guide), follow the steps below.
1
For Windows® XP, click the Start button, Control Panel, Printers and Other Hardware, then Scanners and Cameras (or Control Panel, Scanners and Cameras).
For Windows® 98/Me/2000, click the Start button, Control Panel, then Scanners and Cameras.
Screen
2

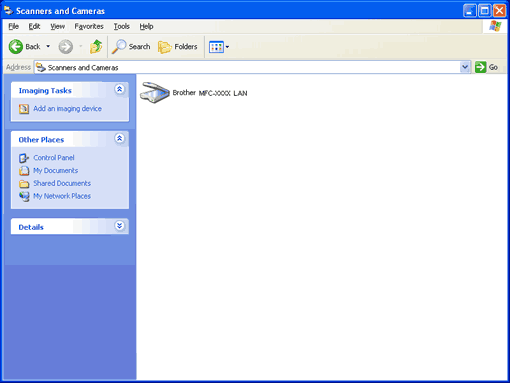

Right-click the Scanner Device icon and choose Properties.
The Network Scanner Properties dialog box appears.
3

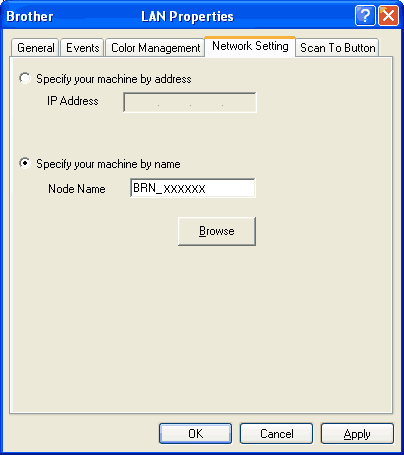

Click the Network Setting tab and choose the appropriate connection method.
Screen
Specify your machine by address
Enter IP address of the machine in IP Address, and then click Apply.
Specify your machine by name
(1)

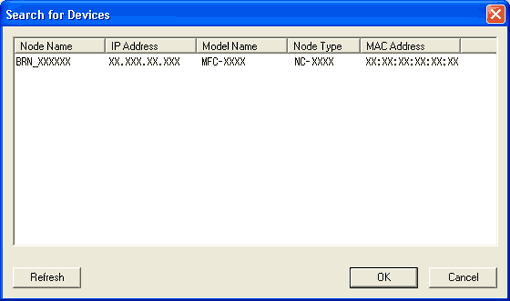

Enter the machine node name in Node Name, or click Browse and choose the device you want to use.
(2)
Click Apply.
Screen
4

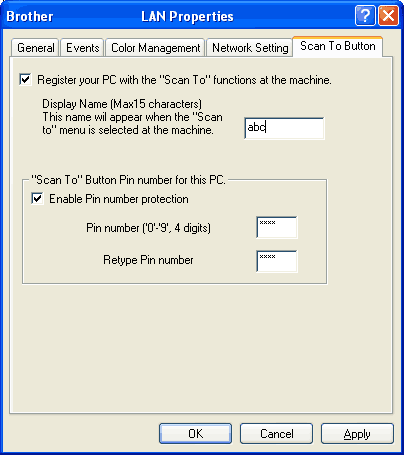

Click the Scan To Button tab and enter your PC name in the Display Name field. The machine’s LCD displays the name you enter. The default setting is your PC name. You can enter any name that you like.
Screen
5
If you want to avoid receiving unwanted documents, enter a 4-digit PIN number in the Pin number and Retype Pin number field. To send data to a PC protected by a PIN number, the LCD prompts you to enter the PIN number before the document can be scanned and sent to the machine. (See Using the Scan key.)
